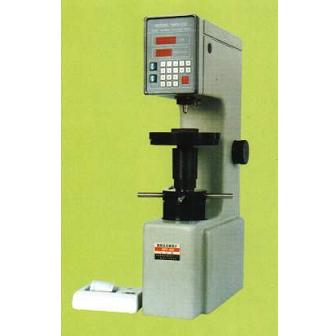

MODEL HRS-150 ROCKWELL
DIGITAL DISPLAY HARDNESS TESTER
. A frictionless loading shaft mechanism is adopted in this instrument instead of conventional type and the application of preliminary test force is controlled by a magnetic clutch, so that the accuracy of preliminary test force is greatly increased.
. A series of operations including applying, holding and releasing of total test force is performed automatically. That completely eliminates human error in those operations.
. Reading error by operators can be avoided thoroughly as the measured hardness values are digitally displayed.
. The measured hardness value and data processing result concerned can be recorded automatically by the recorder.
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 170mm
Depth of throat: 130mm
Unit for display: 0.1HR
Power supply: 220V AC or 110V AC, 50/60Hz
Dimensions: 500 x 250 x 700mm
Weight: approx. 75kg
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
Large V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16”steel ball penetrator: 1 pc.
Rockwell standardized block: 5 pcs.
