Mega-Check FE ö¿ë ÄÚÆõβ² ÃøÁ¤±â
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : List Magnetik
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

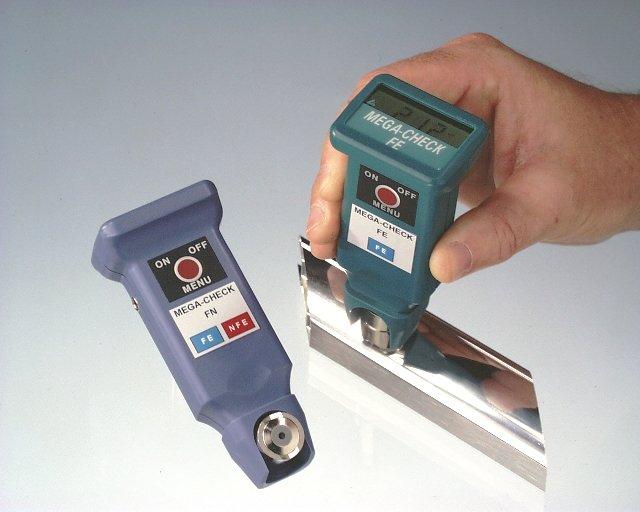

Coating Thickness Meters MEGA-CHECK FE / FE-S / FN:

Mega-Check FN Sonde
Swinging probe

NEW:   Shows statistics


The world's first pocket-size Coating Thickness Meters with a swinging probe.

NEW:   Simply and easy to operate. With only one key you can scroll through the whole operation menu.

NEW:   Now display of statistic parameters NO. - MIN - MAX - MEAN and STD.DEV.!

MEGA-CHECK FE / FE-S measure according to the magnetic induction technique non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films on iron and steel.

MEGA-CHECK FN measures with a twin-function probe according to the magnetic induction and eddy current technique. Measurements can be performed: On iron and steel all non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films. On non-ferrous metals (aluminium, bronze, brass, copper, non-magnetic steel) non conductive coatings (paint, varnish, plastics, anodizing on aluminium).

Features and Technical Data:

Function:

MEGA-CHECK FE

MEGA-CHECK FE-S

MEGA-CHECK FN

Measurement of paint, varnish, plastics and galvanizing on iron and steel

X

X

X

Measurement of insulating coatings (paint, varnish, plastics, anodizing) on non-ferrous metals

-

-

X

Measuring Range

FE 0 - 5000 탆

FE 0 - 5000 탆

FE 0 - 5000 탆
NFE 0 - 2000

Resolution:
< 100 탆   : 0,1
>   100 : 1,0
> 1000 : 0,01 mm

X

X

X

Accuracy:
< 100
:        ?1
100-1000 :   ?1%
1000-2000
: ?3%
> 2000
:      ?5%

X

X

X

Display: LCD 3 - digits

X

X

X

Power Supply: Hydrid battery

X

X

X

Two-point calibration

X

X

X

Automatic switch off

X

X

X

Conversion - mils

X

X

X

Data Logger

-

100 readings

100 readings

Interface RS 232

-

X

X

Size

108 x 48 x 38 mm

108 x 48 x 38 mm

108 x 48 x 38 mm

Weight

100 g

100 g

100 g


Optionals:
?/td> Standard Paper Printer DUO-PRINT
?/td> Data transmission program TRANSFER
?/td> Data evaluation program STAT-6
