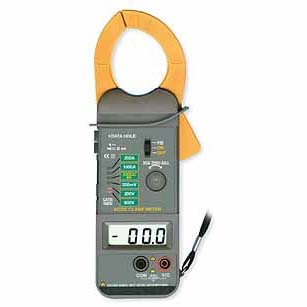

EH380922 1000A DC/AC CLAMP DMM |
|
|
|
| |
1.3" (30mm) clamp jaw opening (500MCM) for 1000A model, Overload protection on most ranges |
Features |
- 2"(52mm) clamp jaw opening (500MCM) for 2000A model
- 1.3" (30mm) clamp jaw opening (500MCM) for 1000A model
- Overload protection on most ranges
- Large 3-1/2 digit LCD with low battery indication
- Temperature measurements on 38093F
- Peak hold to store and recall motor in-rush current
- Data Hold to freeze displayed reading
- Dual hall effect sensors provide 2% DCA accuracy
- Manual DCA zero adjust improves accuracy
- Complete with 9V battery, carrying case, test leads and bead wire Type K thermocouple probe for temperature models
|
|
Applications |
- Motor testing and repair
- Plant Maintenance electrical testing
- Measure motor in-rush current
- Measure motor and machine temperatures
|
| | SPECIFICATIONS - 1000A & 2000A CLAMPS
|
Range |
Resolution |
Accuracy (%rdg+digits) |
AC/DC Current |
200A / 2000A |
0.1A / 1A |
±(1.5%FS + 10d) ±(2%FS+ 5d) |
200A / 1000A |
0.1A / 1A |
±(1.5%FS + 10d) ±(2%FS+ 2d) |
(AC Frequency Resp. 40-400 Hz) |
DC Voltage |
200mV* |
0.1mV |
±(0.8%+ 1d) |
200V / 600V |
0.1V / 1V |
|
AC Voltage |
200V / 600V |
0.1V / 1V |
±(1% + 2d) |
Resistance |
2000Ω |
1Ω |
±(1% + 1d) |
Temperature |
(°F Models) |
-40 to 2000°F |
1°F |
± (1.2%+2°F) from 32 to 1400°F |
(°C Models) |
-40 to 1000°C |
1°C |
± (1%+2°C) from 0 to 750°C |
Peak Hold |
Acquisition time: 150ms; Decay Rate: Less than 2 digits/sec |
Dim./Weight |
9.1x2.8x1.4" (230x70x36mm)/14 oz (400g) |
* Range applies to models without temperature only |
CAT NO. |
|
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
EH380922 |
|
380922 |
|
1000A DC/AC CLAMP DMM (W/OUT TEMP FUNCTION) |
|
Yes |
|
343,440 |
EH38092F |
|
38092F |
|
1000A DC/AC CLAMP DMM - °F |
|
Yes |
|
386,640 |
EH38092C |
|
38092C |
|
1000A DC/AC Clamp DMM - W/TEMPERTURE (-40/1000C) |
|
Yes |
|
386,640 |
EH380923 |
|
380923 |
|
2000A DC/AC CLAMP DMM (WITHOUTTEMP FUNCTION) |
|
Yes |
|
386,640 |
EH38093F |
|
38093F |
|
2000A DC/AC CLAMP DMM - °F |
|
Yes |
|
429,840 |
EH38093C |
|
38093C |
|
2000A DC/AC Clamp DMM - °C |
|
Yes |
|
429,840 |
EH480172 |
|
480172 |
|
OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR 1000A and 2000A AC/DC Clamp+ DMMs |
|
Yes |
|
41,040
|
EH11926 |
|
872501 |
|
OPTIONAL TYPE K BEAD WIRE PROBE FOR 1000A and 2000A AC/DC Clamp+ DMMs |
|
Yes |
|
41,040
|
EH11931 |
|
380965 |
|
OPTIONAL SPARE TEST LEADS FOR 1000A and 2000A AC/DC Clamp+ DMMs |
|
Yes |
|
32,400 |
| |
|
|
| |
|
|
|
|
