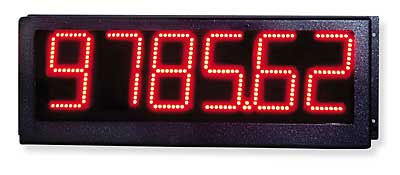

Outdoor display featuring analog signal inputs W/a selection of four signal conditioner cards to display DC
Series A
Process Display
Outdoor display featuring analog signal inputs with a selection of four
signal conditioner cards to display DC and AC voltage & current,
temperature, process (4/20mA) and load cell to a maximum of ±99,999.
This display is fully scalable and easily programmed. Peak hold, 60
readings per second and selectable decimal point are standard.
Excitation output power is provided for your transmitter.
Series C Counter/Timer
This display features pulse type signal inputs to display
rate/frequency, period, count/total, stopwatch and quadrature from logic
signals, sensors and encoders to a maximum of ±999,999. This display is
fully scalable and easily programmed. Peak hold, 60 readings per second
and selectable decimal point are standard. Excitation output power is
provided for your sensor.
Features
Outdoor,
super-bright LED digits
NEMA-4X
aluminum enclosure
Choice
of signal inputs
– DC Voltage or Current
– AC Voltage or Current
– Process 4/20mA, 0/10V etc.
– Strain Gauge and 4/6 wire Load Cell
– Temperature, RTD and Thermocouple
–
Rate, Tachometer Frequency
– Total & Count
– Stopwatch Timing
– Quadrature Position & Rate
Easy
setup and scaling
Universal
115/230Vac display power
Two
year warranty
Options
Dual
setpoints with 10A relays
Analog
Output (0/10V or 4/20mA)
Communications
(RS232 or RS485)
SPECIFICATIONS
Accuracy
.01% of
full scale ±2 counts
Dimensions
25"L x 8
5/8"H x 5 5/8" D
Temperature Range
0°C to 55°C
Operating Power
85 to 264Vac and 90
to 370Vdc
Excitation Output
5V, 10V & 24V
selectable
Series A Signal
Inputs
(fully scalable)
DC & AC volts:
200mV, 2V, 20V, 200V & 660V
DC & AC amps: 2mA, 20mA, 200mA & 5A
Process: 4/20mA, 1/10V etc.RTD: 100-ohm PT -331 to +1562°C & -202
to 850°C
Thermocouple: Types J, K, N, T, E, S & R
Series C Signal
Inputs
(fully scalable)
Dual Channel pulse,
line frequency, logic level, open collector, contact closure &
quadrature signals from quadrature encoders
Output
Options
MDR Dual Relays
10A, Form-C with
latching & band deviation setup
MAO Analog Output
Selectable 4/20mA
or 0/10V isolated outputs fully scalable to thedisplayed reading
M232 Communications
Per RS232
standards, selectable baud rate
M485 Communications
Per RS45 standards,
full duplex, selectable baud rate
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
EN60720
M5WHHHDC*
Mighty-5, DC
Volts/Amps
Yes
2,589,840
Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc
EN60721
M5WHHHE
Mighty-5,
Process 4/20mA
Yes
2,589,840
EN60722
M5WHHHAC*
Mighty-5, AC
Volts/Amps
Yes
2,665,440
Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc.
EN60723
M5WHHHT*
Mighty-5, RTD
& Thermocouple
Yes
2,589,840
Note,
for these models (*), specify the range required (see specifications)
i.e. 2Vdc, 5Aac etc.
EN60724
M5WHHHLC
Mighty-5,
Load Cell
Yes
2,708,640
EN60725
M5CWHHHC1
Mighty-5,
Rate/Frequency/Tachometer
Yes
2,589,840
EN60726
M5CWHHHC3
Mighty-5C,
Count/Total
Yes
2,589,840
EN60727
M5CEWHHHC5
Mighty-5C,
Stopwatch Timing
Yes
2,687,040
EN60728
M5CWHHHQ
Mighty-5C,
Quadrature Distance
Yes
2,473,200
EN60729
M5CWHH2RD
Mighty-5C,
Serial RS232 Remote Display
Yes
2,365,200
EN60730
M5CWHH4RD
Mighty-5C,
Serial RS485 Remote Display
Yes
2,408,400
EN60731
MDR
OPTIONAL
Dual 10A Setpoint Relays
FOR Large Digital Displays
Yes
172,800
(Installed
at factory)
EN60732
MAO
OPTIONAL
Analog Output, 4/20mA or 10V
FOR Large Digital Displays
Yes
194,400
(Installed
at factory)
EN60733
M232
OPTIONAL
Communications, RS232
FOR Large Digital Displays
Yes
140,400
(Installed
at factory)
EN60734
M485
OPTIONAL
Communications, RS485
FOR Large Digital Displays
Yes
183,600
(Installed
at factory)
