| Photo quality backlit colour display for oscilloscope mode, spectrum mode and multi parameter display |
The Power Quality industries’ leading software
Allows the viewer to scroll through event, timeline and waveform data simultaneously, zero in on captured disturbance waveforms, scan historical trends, evaluate static’s and perform harmonic and interharmonic analysis-all with the click of a mouse. With it’s intuitive two-pane browser, complete report writing capabilities, Windows® interface and simple-to-use visualization and analytical capabilities, this software turns every user into a power quality expert. |
| |
|
Features |
- Photo quality backlit colour display for oscilloscope mode, spectrum mode and multi parameter display
- Unique power quality overview mode on a single screen for fast and efficient troubleshooting
- AC voltage and current (via flexible CT up to 3000A)
- Additional current probes available for low current measurement
- mV/A input for installed current transformers
- W, VA, VAR, kWHr and Power Factor measurement, even for distorted waveforms
- Built in 3 phase power capability for balanced loads
- TRMS, Peak, Crest Factor, THD, DF and Frequency for current and voltage
- Harmonics to the 50th with magnitude and phase information
- Measurement of dips, sags, swells, flicker
- Inrush current measurement
- Record function for MIN, MAX and Average
- Internal datalogging and full power quality surveying with time and date stamped values
- Reporting to EN50160 power quality standard with customized parameters
|
| | | SPECIFICATIONS
| Nominal Voltage |
Delta: 200/400/830V
Star: 115/230/480V |
| Intrinsic Error |
115V - 830V – 0.2%; Resolution 0.1V |
| Current Ranges |
30/300/3000A ; Intrinsic Error 0.5% (excludes probe); Resolution 0.01A |
| Power |
Intrinsic Error 1%; Resolution 1W |
| Frequency Range |
45-65Hz; Intrinsic Error 0.2%; Resolution 0.01Hz |
| Harmonics |
1st-50th Vrms, Irms, THD V, THD I |
| Events |
ntrinsic Error 1%; Flicker FL, Pst, Plt, IEC 1000-4-15; Intrinsic Error 3% |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |

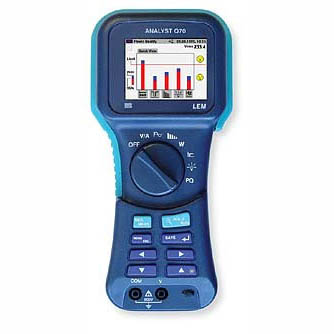

| LM700 |
|
Analyst Q70 |
|
Single Phase Color Backlit Graphical Power Quality Instrument |
|
Yes |
|
4,571,640 |
| 1, 30/300/3000A LEMflex flexible CT, Dran-View® software, carrying case | | |
|
|
 | |
 |
|
 |
|
