| Sensitive sensor with diamond bearing and precise adjustment for high accuracies. |

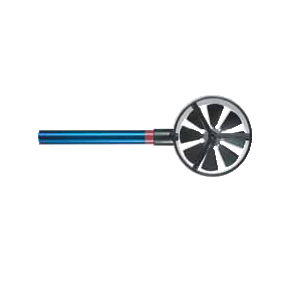

FV A915 SMA1 Rotating Vanes for Air and Gases Type
● Sensitive
sensor with diamond bearing and precise
adjustment for high accuracies.
● The
aluminium rotating vanes have stream-lined measuring heads made from plastic
material (polysulfone).
● The
shafts are, as standard, guided in protected, oiled
beryllium-brass bearing sleeves and supported in tips
made from special case-hardened steel.
● Particularly
suitable for use in climatology.
● Equipped
with snap-on measuring heads and, as a result, very easy to service. |
| Technical Data: |
| Accuracy: |
±0.5% of fin.v., ±1.5% of m.v. |
| Max. resolution: |
0.01m/s |
| Nominal temperature: |
22°C ±2K |
| Operative range: |
-20 to +140°C |
| Meas. head diameter: |
80mm, head replaceable |
| Inlet opening: |
starting from 108mm |
| Sensor length: |
235mm |
| Cable length: |
1.5m, ALMEMO® connector |
| Type: |
| FVA915SMA1 |
Meas. range: 0.1 to 20m/s |
Option:
OV9915TE Temperature sensor (NTC)
installed
Accessories:
| ZV9915SMA1 |
Spare snap-on head |
| ZV9915VR3 |
Extension set Ø 15mm,4 x 255mm |
| ZV9915TV |
Telescope extension
Ø 15…24mm, 330/1010mm |
| ZB9605TK |
Carry-case |
|
| |
|
|
 | |
 |
|
 |
|
