| Independent from ambient temperature through differential temperature measurement. |

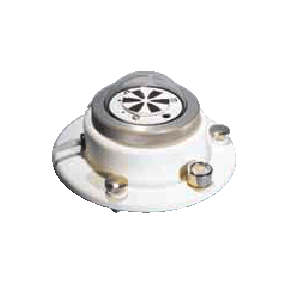

FLA628S Star
Pyranometer Type
● Star pyranometer,
according to Dirmhirn, for measuring the global radiation, the sky radiation
and the short-wave
radiation.
● Independent
from ambient temperature through differential temperature measurement.
● Cut precision
glass cupola for shielding from external
environmental effects.
● Levelling by
3 setting screws and an integrated bubble.
● Delivery including
a factory calibration certificate. |
| Technical Data: |
| Measuring range: |
0 to 1500W/m² |
| Resolution: |
0.1W/m² |
| Spectral range: |
0.3 to 3μm |
| Output: |
approx. 15μV/Wm-² |
| Impedance: |
approx. 35Ω |
| Operative range: |
-40 to +60°C |
| Accuracy: |
cosine effect + azimuth effect +
temperature influence |
Cosine effect:
Inclination azimuth effect:
Temperature influence: |
< 3% of meas. val. (0 to 80°)
< 3% of meas. val.
< 1% of meas. val. (?20 to +40°C) |
| Nominal temperature: |
22°C ±2°C |
| Linearity: |
<0.5% (0.5 to 1330W/m²) |
| Stability: |
<1% of the meas. range per year |
| Settling time: |
25s (t95) |
| Dimensions: |
160mm Ø, 75mm high,
hole circle: 134mm Ø,
holes: 8mm Ø |
| Weight: |
1kg |
| Type: |
| FLA628S |
Star pyranometer including 3m cable with
ALMEMO® connector and programmed calibration value |
| Accessories: |
| ZB9628SB |
Shadow belt with stand |
|
| |
|
|
 | |
 |
|
 |
|
