Lux probe for measuring the density of light at work places according to the guideline ASR 7/3.

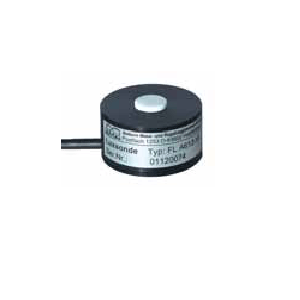

FLA613VL Lux Probe Head Type


¡Ü
Lux probe for measuring the density of light at work places according to the guideline ASR 7/3.
¡Ü Spectral adaptation approximated to the photometric
valuation function V(¥ë). The measuring fault caused by
mismatching is less than 5% with respect to sunlight (D65).
¡Ü Two measuring channels for indoor illumination
(high resolution) and ambient light (low resolution).


Technical Data:
Low resolution channel: 0 to 260.00klux
High resolution channel: 0 to 26000lux
Power supply: +5V
Output voltage: approx. 10¥ìV/lux
Impedance: 1k§Ù
Accuracy: base accuracy 5%
(of meas. value)
accuracy of calibration 5%
(at 24¡ÆC and approx. 3300 lux)
Nominal temperature: 24¡ÆC ¡¾2K
Temperature coefficient: 0.2 %/¡ÆC
Operat./storage temperature: 0 to 60 ¡ÆC/-10 to +80 ¡ÆC
Humidity range: 10 to 90% (non-condensing)
Housing: black anodised aluminium
Safety class: IP62
Weight: 40g
Dimensions: height: 19.5mm, diameter:
housing 37mm, diffusor 15mm

Type:
FLA613VL Lux probe with ALMEMO¢ç connecting cable 1.5m long incl. factory calibration certificate
