| High quality probe head for determining the density of light in lighting engineering or in sunlight |

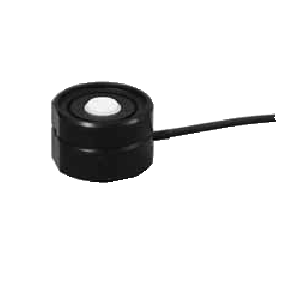

FLA603VLx Lux
Probe Head Type
● High quality probe
head for determining the density of light in lighting engineering or in
sunlight and any place where DIN standards recommend the use of a class
B luxmeter.
● Spectral adaptation
approximated to the photometric
valuation function V(λ) for photopic vision, class B, better
than 6%.
● Different measuring
channels with different sensitivity.
|
| Technical Data: |
| Measuring range: |
FLA603VL2: 0.05 lx to 12500 lx
FLA603VL4: 1 lx to 250000 lx |
| Smallest resolution: |
FLA603VL2: 0.01 lx
FLA603VL4: 1 lx |
| Sensitivity: |
approx. 20pA/lx |
| Spectral adaptation: |
approxim. to photometric valuat. function V(λ) for
photopic vision, class B, better than 6% |
| Max. cos deviation: |
class B, < 3% |
| Cos diffusor: |
diameter 7mm |
| Nominal temperature: |
24°C ±2K |
| Operat./storage temperature: |
0 to 60°C/-10 to +80°C |
| Humidity range: |
10 to 90% (non-condensing) |
| Dimensions: |
Ø 37mm, height 20mm |
| Type: |
| Lux probe head, DIN quality class B with
ALMEMO® connecting cable 2m long, incl. factory calibration certificate
with calibration in lx |
| FLA603VL2 |
for indoor lighting (3 measuring channels) |
| FLA603VL4 |
for ambient light (2 measuring channels) |
|
| |
|
|
 | |
 |
|
 |
|
