| High quality measuring head, DIN class B for light flux measurement with Ulbricht globe photometer. |

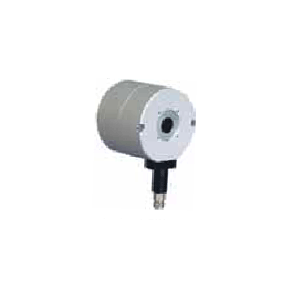

FLA603LSM4 Light
Flux Probe Head
● High quality measuring
head, DIN class B for light flux
measurement with Ulbricht globe photometer.
● Perfect coating
of the globe with BaSO4 for diffuse reflectivity and spectrally neutral
reflection quality.
● Suitable for
cold light sources, and lamps with high colour temperature and almost monochromatic
radiation (as in LEDs).
● Examples for
applications:
Endoscopes, fiber optic bunches, light emitting diodes.
|
| Technical Data: |
| Measuring range: |
0.001 lm to 250 lm |
| Smallest resolution: |
0.001 lm |
| Sensitivity: |
20nA/lm |
| Acceptance angle: |
up to 90 ° |
| Accuracy: |
DIN quality class B |
| Nominal temperature: |
24°C ±2K |
| Humidity range: |
10 to 90 % non-condensing |
| Operating temperature: |
max. 100°C inside globe |
| Inner diameter of globe: |
50mm |
| Test opening: |
12.7mm |
| Type: |
| FLA603LSM4 |
Light flux probe head with ALMEMO® connecting
cable 2m long and factory calibration certificate |
|
| |
|
|
 | |
 |
|
 |
|
