| Compact sensor for mobile and stationary applications. High display resolution (1 ppm) |
FYA600CO2H

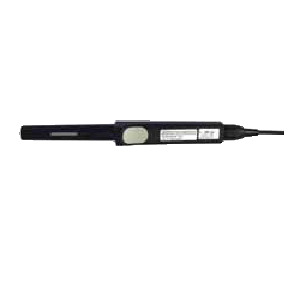

Carbon Dioxide Sensor, hand-held Type
● Compact sensor for
mobile and stationary applications
● High display
resolution (1 ppm)
☞ Operation with the device in SLEEP
mode is not possible!
When operating more than one CO2 probe on a single
ALMEMO® device, these CO2 probes will need their own
external power supply ! On request we can offer a wide
variety of power supply options to suit your particular
measuring setup.
| Types: |
| FYA600CO2H |
Carbon dioxide sensor, hand-held including
connecting cable, 1.5 m long for measuring CO2 in air |
|
| Technical Data: |
| Sensor: |
2-channel infra-red absorption principle |
| Measuring range: |
0 to10 000 ppm (0 to 1 vol% CO2 ) |
Accuracy:
(under nominal conditions) |
0 to 5000 ppm±
(50 ppm+ 2% of measured value)
5000 to 10000 ppm
±(100 ppm +3% of meas. value) |
| Resolution: |
1 ppm or 0,0001 vol % |
| Nominal conditions: |
22°C ±2 °C / 50 % rF ± 10 % rF |
| Ambient temperaturer: |
0 to +50 °C |
| Storage temperature: |
-20 to +50 °C |
| Ambient atmospheric humidity: |
0 to 90 % rF (non-condensing) |
| Temperature coefficient |
0,4% of measured value / °C |
| Voltage supply: |
6.5 to 12 V DC,
from the ALMEMO® device
Operation with mains supply unit
recommended |
| Current consumption: |
effective approx. 40 mA;
max. approx. 80 mA |
| Connection cable: |
1,5 m |
|
| |
|
|
 | |
 |
|
 |
|
