AMiR 7841

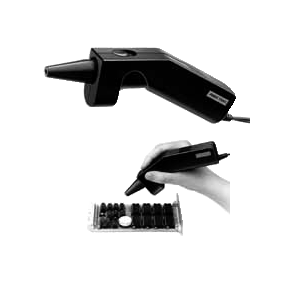

Infrared Temperature Measuring Finger Type
 |
Technical
Features:
●
Low cost infrared sensor for connection to handheld instruments.
●
Integrated current supply via 9V battery in handle including
on/off switch and automatic 10min cutoff.
●
Suitable for control measurements of surface temperatures
in many fields of industry and craft.
●
Due to the compact design and easy operation it is ideally
suitable for electricity and electronics to identify hot spots on PCBs,
contacts etc. |
| Technical Data: |
| Measuring range: |
-18 to 260°C |
| Resolution: |
1K |
| Accuracy: |
±2% of meas. value or ±2K |
| Reproducibility: |
1% of meas. value or ±1K |
| Nominal temperature: |
23°C ±5°C |
| Response time: |
1s |
| Spectral sensitivity: |
8 to 14mm |
| Emissivity: |
0.95 fixed setting |
| Power supply: |
9 V alkaline-manganese battery (IEC 6 LR 61) operating
life time 50hrs (with 10min cutoff) |
| Ambient temperature: |
0 to 65°C permissible |
| Relative humidity: |
10 to 70%, non-condensing at 30°C |
| Dimensions/weight: |
L 180 x W 30 x H 50mm, 180g |
|
| Types: |
| MR784110 |
With linearised voltage output 1mV/°C,
lab connector for multimeter connection |
| MR784120 |
With thermocouple characteristic curve NiCr-Ni (K),
miniature flat connector |
| FIA260MV |
With ALMEMO® flat connector for direct connection
to ALMEMO® handheld devices |
|
| Measuring Field Diagram: |
 |
|
| |
|
|
 | |
 |
|
 |
|
