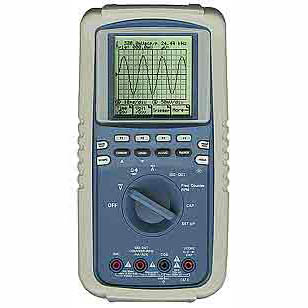

| EH381285 5MHz Handheld DMM/Oscilloscope kit |
|
|
|
|
 | |
|
|
Oscilloscope Functions |
- 160 x 160 pixel high density graphical display with EL backlight
- DC to 5MHz bandwidth and 25MSPS sampling rate
- Vertical sensitivity of 10mV to 200V per division with 14 divisions displayed
- Single channel with 1Mohm input impedance
- Horizontal sweep rate of 125nS to 2S per divisions with 23 divisions
- Adjustable trigger level and slope
- Single shot mode with waveform expansion or compression
- Cursor function measures time or voltage two point differences on a waveform
|
| | |
|
General Functions |
- Store up to 15 screens or text displays
- Auto power off
- RS-232 PC interface with Windows® software
- Complete with protective holster, built-in stand, Windows® 95/98 compatible software, RS-232 cable, 6 AA batteries, fuses, test leads, alligator clips
- Optional rechargeable NiCad battery pack & AC adaptor/recharger recommended
|
|
MultiMeter Functions |
- 4000 count dual display with analog bargraph
- True RMS AC Voltage and Current
- Functions include dBm, Diode and Continuity
- Max/Min/Average with time stamping and graphical plot
- Auxiliary feature allows for direct temperature, humidity or high current displays using external dmm adaptors
- High/Low comparator feature in the voltage, resistance or auxiliary functions
- Frequency Counter function with simultaneous frequency, period and rpm display
- 5V square wave output is adjustable (2.5Hz to 78kHz)
- Automotive rpm, %duty cycle, dwell and ms pulsewidth displays
- Graphical logic analyzer function
|
| | | |
| SPECIFICATIONS
|
Ranges |
Max. Resolution |
Basic Accuracy (%rdg + digits) |
| DC Voltage |
400mV to 1,000V |
0.1mV |
±(0.3% + 10d) |
| AC Voltage (TRMS) |
400mV to 700V |
0.1mV |
±(0.75% + 10d) |
| DC Current |
400mA to 20A |
10μA |
±(1.2% + 10d) |
| AC Current (TRMS) |
400mA to 20A |
10μA |
±(1.2% + 10d) |
| Resistance (Ω) |
400Ω to 40MΩ |
0.1Ω |
±(0.5% + 10d) |
| Capacitance |
40nF to 100μF |
1pF |
±2.0% |
| Frequency |
1Hz to 5MHz |
0.1Hz |
±0.1% |
| Signal Output |
2.5Hz to 78kHz |
1Hz |
|
| Power |
6 x AA batteries, rechargeable batteries or AC adaptor |
| Dimensions/Weight |
4.2 x 8.3 x 2.2" (107 x 220 x 55mm)/1.77lb (800g) |
| Catalog No. |
Description |
Price |
| EH381285 |
5MHz Handheld DMM/Oscilloscope kit |
732,564 |
| EH381279 |
NiCad Batteries & 117VAC Charger |
89,964 |
| EH381299 |
Vinyl pouch carrying case with shoulder strap |
44,064 |
| EH381277 |
Temperature Adapter |
71,604 |
| EH445603 |
Humidity Adapter |
310,590 | | |
|
|
 | |
 |
|
 |
|
