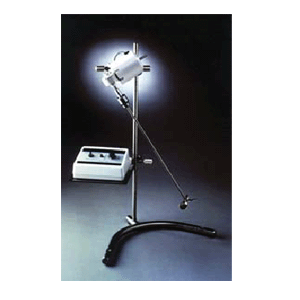

DUAL SHAFT MIXER
Versatile dual shaft design offers high-speed and high-torque mixing for
larger volumes of UV inks and coatings. Direct-drive shaft generates 50-5000
rpm for high speed, low-viscosity mixing. Gear-reduction shaft provides
high
140"/oz torque from 3-250 rpm for high viscosity mixing needs.
Rugged, permanent magnet TENV gear motor uses permanently lubricated ball
bearings for instant start. Gearreduction ratio is rated at 20:1. Equipped
with solid-state speed controller with 100:1 adjustment range. Features
separate forward/off/reverse and speed controls. Maintains consistent speed
under changing loads. Accepts a wide assortment of universal stainless steel
propellers, mixing blades and stirring shafts with 3/8" and 5/16"
diameter shafts. Stand and heavy-duty clamp also available. |
COMPLETE WITH:
● 6"L mounting rod
● Jacobs-style chuck with key
● 6 ft 3-wire cord with grounded plug
FEATURES:
| ● Speed Range: |
Direct drive: 50-5000 rpm; Gear: 3-250
rpm |
| ● Max Torque: |
Direct drive: 7"/oz; 140"/oz |
| ● Motor: |
1/25 hp |
| ● Shaft Size: |
3/8"-5/16" |
| ● Dimensions: |
Motor: 5-3/4"H x 3-1/2"D
Controller: 7"W x 3-3/16"H x 4-7/8"D |
| ● Power: |
115V AC, 50/60 Hz |
| ● Weight: |
7 lbs (3.2 kg) |
| ● For mixing viscosities
of up to 1,000 cPs (up to 1 gallon) |
OPTIONS:
● Corrosion resistant,
cast steel support stand with 28"H x 3/8" rod
● Compatible with a wide assortment
of universal accessories. |
| Part Number |
Description |
Units |
| J009-049 |
DUAL SHAFT MIXER |
EACH |
| J009-052 |
SUPPORT STAND |
EACH |
| J009-055A |
DOUBLE CLAMP HOLDER |
EACH |
| |
|
|
 | |
 |
|
 |
|
