It has a maximum weight of 4.1 lbs with a maximum discharge pressure of 100 PSI.
DOUBLE DIAPHRAGM 1/4”
PUMP

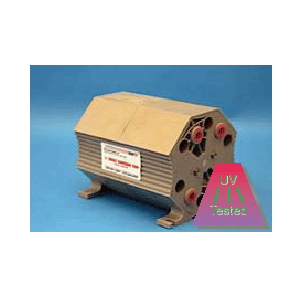

The CON-TROL-CURE® Double Diaphragm 1/4" Polypropylene Pump is the
most recent addition to the line of CON-TROL-CURE® pumps guaranteed to work
with UV inks and coatings. The Double Diaphragm 1/4" Pump transports
4.6 GPM with 20+ ft suction from bucket to ink delivery tray, making it
ideal for extended, continual use. It has a maximum weight of 4.1 lbs with
a maximum discharge pressure of 100 PSI. The single inlet/outlet polypropylene
pump is constructed with stainless steel hardware. With a 1/4" piping
capacity, it can be plumbed in any of 4 fluid inlet/outlet configurations.
Mounts in any position: upside down, sideways, right-side-up, 360° on all
3 axes - all without affecting performance. The CON-TROL-CURE® Double Diaphragm
1/4" Pump has an air motor design that cannot stall and will start
up or shut off after any interval or length of time.
1/4" Pump Rebuild Kit. This kit contains parts and
instructions necessary for the replacement of most components of the CON-TROLCURE®
Double Diaphragm 1/4" Pump. The kit includes diaphragm, back-up ring,
seal, disc, spring stop, spool assembly, U-cup, and Orings in a variety
of sizes. 1/4" Pump Air Valve Kit also available.
Part Number
Description
Units
J004-051
DOUBLE DIAPHRAGM PUMP 1/4"
EACH
J004-060
1/4" PUMP REBUILD KIT
EACH
