The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your full production line.

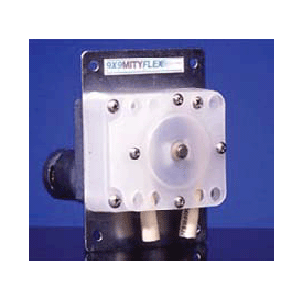

OEM COMPACT PERISTALTIC
PUMP
The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your
full production line. It is compact and flexible to fit into many built-in
specifications. Self-priming up to 29 ft, can be run dry continuously and
is non-siphoning.
SPECIFICATIONS:
● Complete Components:
Drive and pump head
● Tubing Size:
1/4" I.D. (6.3 mm)
● Operating Pressure:
Minimum of 0-20 PSI (continuous)
Maximum of 25-35 PSI (intermittent)
● Special Design:
Lightweight, reversible, in-line capability
● Enclosure:
Equipped with 18 gauge zinc-plated steel mounting
plate
● Flow Rate Range:
3 mL/min - 987 mL/min
● Max Operating Temperature:
175°F
● Electrical:
12/24V DC
● Viscosity:
Can handle up to 10,000 cPs, particulates and low
shear
● Weight:
8 lbs
● Dimensions:
5.12"W x 3.74"H x 4.55"D
● Options:
Dual pump heads
IMPORTANT NOTE: Compact peristaltic pumps
should only be used with non-flammable materials.
Part Number
Description
Units
J432-003
OEM PERISTALTIC PUMP
EACH
