E144-017 SCREEN FRAME CLAMP UNIT
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

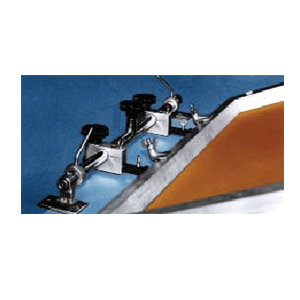

Precision micrometer adjustments are included with the machined steel, fully adjustable Screen Frame Clamp.
SCREEN FRAME CLAMP UNIT


Precision micrometer adjustments are included with the machined steel, fully adjustable Screen Frame Clamp. Each unit comes complete with etched micrometer adjustment marks
for easy reference.

The Screen Frame Clamp provides tight registration tolerances for high quality reproduction. Its "XYZ" control system locks in place for easy and excellent repeatability.

Easily mounted to any standard vacuum table or base, these clamps can be used with metal or wood frames, 5/8" to 2" thick. 4 standard maximum screen frames are available. Frames not included.

Part Number Description Maximum Screen Size Units
E144-017 SCREEN FRAME CLAMP 26 20" x 26" EACH
E144-018 SCREEN FRAME CLAMP 30 26" x 30" EACH
E144-019 SCREEN FRAME CLAMP 50 38" x 50" EACH
E144-020 SCREEN FRAME CLAMP 58 52" x 58" EACH
