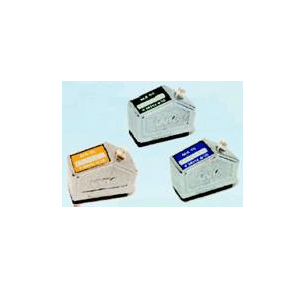

MA45-2 Miniature Shear Wave - Single Element
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
These MA transducers are high quality, hard wearing designed for reliability and consistent performance.
These MA transducers are high quality, hard wearing designed for reliability and consistent performance. For use on large volume routine metal fabrications or welded assemblies where it is essential that the transducer can be relied upon. Compatible with virtually all flaw detectors.

Lemo 00 or Microdot connectors
2MHz or 4 MHz


Specification:

¡Ü Housing: Die-cast
¡Ü Crystal Diameter: 3/8"
¡Ü Crystal: Lead Zirconate Titanate
¡Ü Frequency accuracy: ¡¾10%
¡Ü Angles: 45¡Æ, 60¡Æ & 70¡Æ
¡Ü Angle accuracy: ¡¾2¡Æ
¡Ü Overall size: 1.3" Long x 0.7" wide x 1" high
¡Ü Beam emission point marked on each transducer
¡Ü Long life - Hard wearing
¡Ü Easy change contact face

Want to try the transducer but not quite sure if it will meet your requirements - simply order one, try it out and if for any reason you do not like simply return it and get full refund. We welcome your comments.

Miniature Shear Wave - Single Element
Part# Product Description Unit Unit Price
MA45-2 45 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA45-2L 45 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø
MA45-4 45 Degree 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA45-4L 45 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø
MA60-2 60 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA60-2L 60 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø
MA60-4 60 Degree 4MHz 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA60-4L 60 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø
MA70-2 70 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA70-2L 70 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø
MA70-2 70 Degree 4MHz 3/8" Dia Single - Microdot Each 240,000 ¿ø
MA70-2L 70 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 ¿ø

One of each angle
There are no products to list in this category.

Miniature Shear Wave - Single Element
NEW PeizoComposite
Part# Product Description Unit Unit Price
MAPP38-2 38 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP38-2L 38 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP38-4 38 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP38-4L 38 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP45-2 45 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP45-2L 45 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP45-4 45 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP45-4L 45 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP60-2 60 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP60-2L 60 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP60-4 60 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP60-4L 60 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP70-2 70 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP70-2L 70 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø
MAPP70-4 70 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 ¿ø
MAPP70-4L 70 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 ¿ø

One of each angle
There are no products to list in this category.
