• Menu-driven user interface with multilingual support including: English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
• Ready to measure-no calibration adjustment required for most applications
• One-Handed menu navigation
• Bi-color indicator light-ideal in a noisy environment
• RESET feature instantly restores factory settings

• Solvent, acid, oil, water and dust resistant-meets or exceeds IP5X ingress protection
• Wear-resistant probe tip
• Thick, impact and scratch resistant Lexan® display suitable for harsh environments
• Protective rubber holster with quick-release belt clip and probe storage
• Two (2) year warranty

• Certificate of Calibration showing traceability to NIST included
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases displayed resolution for use on applications that require greater precision
• Conforms to national and international standards including ISO and ASTM

• Multiple calibration adjustment options including 1 point, 2 point, known thickness and average zero
• Calibration Lock
• SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels (memory (3) gages only)
• Selectable display languages
• Flip Display for right-side-up viewing
• Backlit display for dim or dark environments
• Mils/Microns/mm switchable
• Extended cables available (up to 250 ft/75 m) for remote measuring

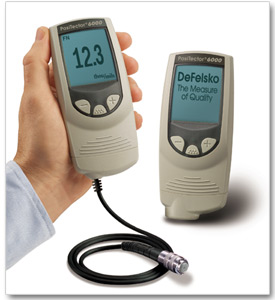

• All PosiTector 6000 Gages are available in your choice of Basic, Standard and Memory configurations.

Easy steps to select a gage...

 Select substrate
    F - for ferrous metals (steel and cast iron)
    N - for non-ferrous metals (aluminum, copper, brass, etc.)
    FN - for all metal substrates - Gage automatically recognizes the substrate and takes a measurement

 Select from a variety of measurement ranges and probe styles

Built-in probes               Separate Probes

 Select Basic (1), Standard (2) or Memory (3) model

PosiTector 6000 - Feature Comparison Chart		Basic (1)	Standard (2)	Memory (3)
	No Calibration required for most applications
	One handed menu navigation
	Average Zero Feature; ideal for zeroing on rough substrates
	Mils/Microns/MM switchable
	Adjustable to a known thickness
	Thick impact resistant Lexan® display
	Flip Display enables right side up viewing whether the gage is in your hand or on a work table
	Backlit display for dim or dark environments
	Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits	-
	Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring	-
	High Resolution mode increases the displayed resolution for use on applications that require greater precision	-
	Reading Storage Capacity	-	250 in one group	10,000 in up to 1000 groups
	SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels	-	-
	Built in clock to date and time stamp each stored measurement	-	-
	Multiple stored calibration adjustments for measuring on a variety of substrate conditions	-	-
	Serial RS232 communication for downloading readings as they are taken to a PC or Data Collector (requires optional Serial Output Cable)	-	-
	PosiSoft downloading and charting software (includes USB cable)	-	optional
	Built-in IR port for printing to an optional portable printer	-
	Protective rubber holster with belt clip
	Nylon carry case with shoulder strap
	Certificate of Calibration showing traceability to NIST
	Two (2) Year Warranty

Selection Note: F - for ferrous metals (Example: FS) N - for non-ferrous metals (Example: PosiTector 6000 NS) FN - for all metal substrates (Example: PosiTector 6000 FNS)

 Built-in probes

Built-in Probe	Gage Models:	F1, F2, F3	N1, N2, N3	FN1, FN2, FN3	FT1, FT2, FT3
	Range:	0 - 60 mils			0 -250 mils
		0 - 1500 um			0 - 6 mm
	Accuracy*:	+ (0.05 mils + 1%)  0 - 2 mils    + (0.1 mils  +  1%)  > 2 mils			+ (0.5 mils + 1%)  0 - 100 mils  + (0.5 mil + 3%) > 100 mils
		+ (1 um + 1%)  0 - 50 um  + (2 um + 1%)  > 50 um			+ (0.01 mm + 1%) 0 - 2.5 mm + (0.01 mm + 3%) > 2.5 mm
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

 Separate Regular Probes

Regular	Probe Models:	FS	NS	FNS	NAS	FTS
	Range:	0 - 60 mils			0 -25 mils	0 -250 mils
		0 - 1500 um			0 - 625 mm	0 - 6 mm
	Accuracy*:	+ (0.05 mils + 1%)  0 - 2 mils    + (0.1 mils  +  1%)  > 2 mils			+ (0.02 mils + 1%)  0 - 4 mils  + (0.1 mils + 3%)  > 4 mils	+ (0.5 mils + 1%)  0 - 100 mils  + (0.5 mil + 3%) > 100 mils
		+ (1 um + 1%)  0 - 50 um  + (2 um + 1%)  > 50 um			+ (.5 um + 1%)  0 - 100 um  + (2 um + 3%)  > 100 um	+ (0.01 mm + 1%) 0 - 2.5 mm + (0.01 mm + 3%) > 2.5 mm
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

90 Regular	Probe Models:	FRS	NRS	FNRS
	Range:	0 - 60 mils
		0 - 1500 um
	Accuracy*:	+ (0.05 mils + 1%)  0 - 2 mils    + (0.1 mils  +  1%)  > 2 mils
		+ (1 um + 1%)  0 - 50 um  + (2 um + 1%)  > 50 um
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

 Separate Microprobes

0 Microprobe	Probe Models:	F0S	N0S
	Range:	0 - 25 mils
		0 - 625 um
	Accuracy*:	+ (0.02 mils + 1%)  0 - 4 mils  + (0.1 mils + 3%)  > 4 mils
		+ (.5 um + 1%)  0 - 100 um  + (2 um + 3%)  > 100 um
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

45 Microprobe	Probe Models:	F45S	N45S
	Range:	0 - 25 mils
		0 - 625 um
	Accuracy*:	+ (0.02 mils + 1%)  0 - 4 mils  + (0.1 mils + 3%)  > 4 mils
		+ (.5 um + 1%)  0 - 100 um  + (2 um + 3%)  > 100 um
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

90 Microprobe	Probe Models:	F90S	N90S
	Range:	0 - 25 mils
		0 - 625 um
	Accuracy*:	+ (0.02 mils + 1%)  0 - 4 mils  + (0.1 mils + 3%)  > 4 mils
		+ (.5 um + 1%)  0 - 100 um  + (2 um + 3%)  > 100 um
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

 Separate High-Range Probes

High-Range	Probe Models:	FNTS	FKS	NKS
	Range:	0 -250 mils	0 -500 mils
		0 - 6 mm	0 - 13 mm
	Accuracy*:	+ (0.5 mils + 1%)  0 - 100 mils  + (0.5 mil + 3%) > 100 mils	+ (1 mils + 3%)  0 - 500 mils  + (0.02 mm + 3%) 0 - 13 mm
		+ (0.01 mm + 1%) 0 - 2.5 mm + (0.01 mm + 3%) > 2.5 mm
	*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
