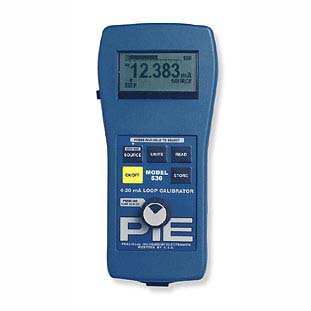

상품 상세보기 : 전기 Electrical - PR530 4020 Milliamp Loop Calibrator

You don't have to get out our DMM to check the loop with the Loop Diagnostic feature - you just hook up the leads and the unit will display - loop current, voltage, loop resistance, AC volts & mode of operation, Plus DETECT HART® Protocol Communication.

Features

4 to 20 mA Loop Functions
– Source and Read 0.000-24.000 mA
– Simulate 2-Wire Transmitters
– Power 2-Wire Transmitters and Read 0.000-24.000 mA
– Display current in mA or -25.00-125.00 % of 4-20 mA
Read & Source Voltage Function
– Read 0.00 to ± 30.00 VDC with 4X over range ability
– Source 0.000 to 24.000 VDC with up to 20 mA output
– Direct Calibration 1.000V to 5.000V
Full 5 Digit Display
EZ-Dial™ Knob
EZ-Check™ Switch with EZ-Step™ Button
Hands-free auto step and auto ramp modes
Uses a standard 9V Alkaline Battery
240 VAC Tolerant
Lightweight and rugged with a solid feel
HART® protocol compatibility mode

SPECIFICATIONS

	PR530	PR532	PR535
EZ-Check 3 position switch	x	x	x
One handed pushbutton step & ramp	x	x	x
Auto Ramp & step	x	x
Bar Graph of input & output levels to 1%	x	x	x
HART® protocol compatible	x	x	x
Selectable 250Ω resister at turn on	x	x	x
Full 5 Digit Display	x	x	x
Range & Resolution	0-24mA	0-24mA	0-50mA
40VAC Tolerant	x	x	x
High Accuracy	0.012% of RDG	0.012% of RDG	0.025% of RDG
Drive 1200Ω at 20mA for Full Battery Li fe	x	x	x
Read ± 60Volts with 2x Over Range	x	x	x
Display in mA or %	x	x	x
Superior Battery Life 45hr	x	x	x
***Loop Diagnostic		x

Modes of Operations – Source, Read, Power measure & 2- Wire Transmitter Simulate

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

PR530

530

4-20 Millilamp Loop Calibrator

Yes

1,055,700

PR532

532

4-20 Milliamp Loop Calibrator with Built-in Loop Diagnositc

Yes

1,276,020

PR535

535

0-50 Milliamp Loop Calibrator

Yes

3,662,820

PR0200

OPTIONAL Carrying Case FOR Milliamp Loop Calibrators

Yes

91,800

PR0100

OPTIONAL AC Adapter FOR Milliamp Loop Calibrators

Yes

91.800
