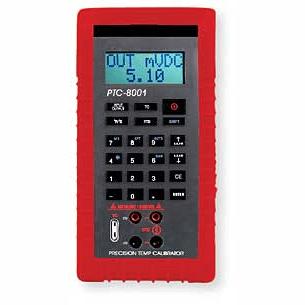

| This Precision Temperature Calibrator is an ideal device to handle all of your temperature calibration needs in a truly rugged, low cost package. It combines virtually all widely used thermocouples and RTDs in one device—you’ll never have to worry about finding a temperature device you can’t calibrate. This is especially true when calibrating “smart” or pulsed RTD transmitters where many other calibrators fail to work or operate at reduced accuracy specs. The unit handles those applications with ease. |
| |
|
Features |
- High accuracy ±0.4°C and ±0.3°C RTD all errors included
- 10 T/C types and 8 RTD types including PT 385 (1000 ohm) and CU (10 ohm)
- Direct keyboard entry or scroll control of output
- NEMA 4 rated case, rugged design
- RTD simulation works with all pulsed (smart transmitters)
- YSI 400 series thermistor range for medical application
- Standard mini-plug or banana jack connections for T/C
- Store up to nine setpoints for each output function
- RS232 Interface
- Thermocouple & RTD Capability in one unit
- Works with Rosemont 3144 and all other "smart" transmitters
- Each unit includes: Test leads, rubber boot, 4 AA alkaline batteries, NIST Certificate and instruction manual
|
| | | SPECIFICATIONS
|
T/C Ranges |
J, K, T, E, R, S, N, B, L, U including -10 to 70 nmV range |
| RTD Ranges |
Pt 385 (100, 200, 500, 1000 ohms) |
| Pt392, JIS, Ni, 120, CU10, YSI 400 |
| Ohms Ranges |
0 to 400.00 and 400.00 to 4000.0 |
| Accuracy |
T/C Type J: ±.3°C ±10μ |
| V (±0.6°C total error) |
| RTD PT100: ±.1°C ± .075 Ω |
| (±0.3°C total error) |
| Ohms (400): ±0.1Ω |
| Ohms (4000): ±1.0Ω |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| ML3820011 |
|
PTC-8000 |
|
TEMPERATURE CALIBRATOR |
|
Yes |
|
1,826,820 |
| ML80029 |
|
80029 |
|
OPTIONAL THERMOCOUPLE CABLE KIT FOR High Accuracy Temperature Calibrator |
|
Yes |
|
181,764 |
| Kit includes: Type J T/C Cable, Type K T/C Cable, Type T T/C Cable and Type E T/C Cable All cables are terminated with a standard mini-connector on one end and bare leads on the other. |
| ML02 |
|
10077 |
|
OPTIONAL "AA" NICAD BATTERY (SOLD EACH) FOR High Accuracy Temperature Calibrator |
|
Yes |
|
15,606/font>
|
| ML342103 |
|
1001-9V |
|
OPTIONAL AC ADAPTOR FOR High Accuracy Temperature Calibrator |
|
Yes |
|
40,392 | | |
|
|
 | |
 |
|
 |
|
