Equipment
performance
SDF(SSF)series

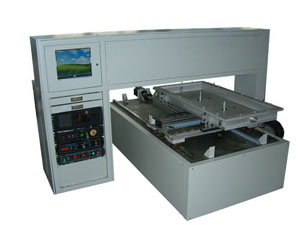

laser scribing machine: Adopting semiconductor pump laser or solid state laser.
the direction of laser point is fixed, the
worktable take with the solar panel, and move with the laser point relatively to
finish the scribing work, the special X-Y axis worktable for
scribing, servo-motor for driving, ball screw mandrel and track for
transmission. By the proprietary control software for easily edit and
revision of scribing path, adopting dividing-laser
system to finish the laser output of two path synchronously.
Applicable
fields
Engraving
and lineation of TCO film、a-Si
film、Al
plating film at solar energy industry.
The
main technical parameters
|
Type
specification
|
SDF50B
|
SDF10D
|
SSF10B
|
SSF5D
|
|
Laser
wavelength
|
1064nm
|
532nm
|
1064nm
|
532nm
|
|
Laser
power
|
50W
|
10W
|
10W
|
5W
|
|
Laser
repetition frequency
|
200Hz~50kHz
|
1kHz~100kHz
|
|
Scriber
linewidth
|
100μm
|
80μm
|
|
Scriber
speed
|
200mm/s
|
400mm/s
|
|
Scriber
precision
|
±10μm
|
±10μm
|
|
Work
platform
|
49＇×
25＇(1250×640mm)
|
49＇×
25＇(1250×640mm)
|
|
Cooling
way
|
Outside
suspension type (integration)
circulation water cooling
|
Wind
cooling
|
Showroom
for samples
| |
|
|
 | |
 |
|
 |
|
