| The HT100 &
HT120 were developed to handle the extreme temperatures and conditions
previously impossible for a Datalogger. With a temperature monitoring
range of -40 to +257°F and waterproof case constructed of stainless
steel, the HT100 & HT120 are ready for your toughest applications.
Perfect for HACCP, FDA, pharmaceutical, medical, agricultural, and oil
& gas applications. Compatible with our newest presentation
software. |
| |
|
Features
|
- Real
time monitoring and graphing
- Faster
downloads
- Makes
exporting to other software a snap
|
| |
|

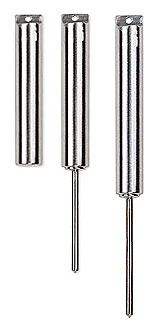

DK976517
|
- Compact,
only 3.69" x 0.6875" DIA. Perfect for tight
locations, oil & Gas and process applications
|
| |
|
|
DK976516
|
- Features
a 2.5" x 3/16" DIA probe. Perfect for monitoring
liquids and solids in freezers, autoclaves, incubators and
baths.
- Also
perfect for monitoring soil and sand temperatures
|
| |
|
DK976525
|
- Features
a 5" x 0.11" DIA probe. Made to meet the
requirements of HACCP.
- Monitor
meat in smokers and coolers and much more
|
| |
|
SPECIFICATIONS
| Temperature Range |
-40 to +257 °F
(-40 to +125 °C) |
| Temperature
Accuracy |
±1.8°F (±1°C)
over range -4 to +212 °F (-20 to +100 °C) |
| |
±3.6 °F (±2°C)
over range -40 to +257 °F (-40 to +125 °C) |
| Sensor Type |
Internal Thermistor |
| Battery Type |
Lithium 3.6V
(non-replaceable) |
| Battery Life |
5 years typical at
1 minute sample intervals |
| Battery Storage
Life |
>10 years
typical when not logging |
| Repairs |
Unit
non-repairable, practical life of unit, 5 years |
| User Calibration |
Zero calibration
with DK015 software |
| Sample Point
Storage* |
7936 measurements |
| Download Time |
45 seconds, typical
with logger full |
| Response Time |
DK976517: 15 min.
to 63% of Full Scale, typical;
DK976516/DK976525: 5 min. to 63% of Full Scale, typical |
| Resolution |
0.1 °F (0.1 °C)
at +70 °F; 1 °F (0.6 °C) over range -40 to +257 °F (-40 to +125 °C) |
| Approvals |
CE |
| Enclosure Type |
316 Stainless Steel |
| Dimensions
(enclosure) |
DK976517:
3.69" (9.37cm) x 0.6875" (1.75cm)
DIA; DK976516: 6.25" (15.88cm) x 0.6875" (1.75cm)
DIA;DK976525: 8.69" (22.07cm) x 0.6875" (1.75cm) DIA, Probe
0.11" (0.28cm) DIA |
| Weight |
DK976517: 2.5oz
(72g); DK976516: 2.7oz (78g); DK976525: 2.7oz (78g) |
| DK015 -
SoftWare & Download Cable Specifications |
| Compatible With |
Windows™ 95,
98, 2000 and NT |
| PC Requirements |
PC with 386 or
better microprocessor, 4M RAM, 1 free COM (serial) port, CD drive |
| Cable Type/Length |
9 pin male D-shell
to male 2.5mm stereo plug, 6' long |
| Computer Interface |
RS-232 COM (serial)
port |
Sofyware Version
Required (minimum) |
1.00.00.64 |
|
* Sample points
are a logger's data storage capacity.
For example, the DK976517 High Temperature Datalogger can store up to
7,396 sample points. If you request a temperature sample every minute,
it would record for 5.5 days before filling the memory, recording every
10 seconds would take 22 hours to fill, and so on. You can set the
sample rate from 10 seconds to 24 hours in 10 second increments.
|
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| DK976525 |
|
A202 |
|
100' Straight
Extension Cable (FT121 only) |
|
Yes |
|
861,840
|
| DK976516 |
|
HT120 |
|
High
Temperature Datalogger w/Probe |
|
Yes |
|
753,840
|
| DK976517 |
|
HT100 |
|
High
Temperature Datalogger |
|
Yes |
|
732,240
|
| DK015 |
|
A015 |
|
DicksonWare™
Software and Download cable |
|
Yes |
|
170,640
|
| DK025 |
|
A025 |
|
DicksonWare™
Secure Software and Download Cable (21CFR11 compliant) |
|
Yes |
|
357,714
|
| |
|
|
 | |
 |
|
 |
|
