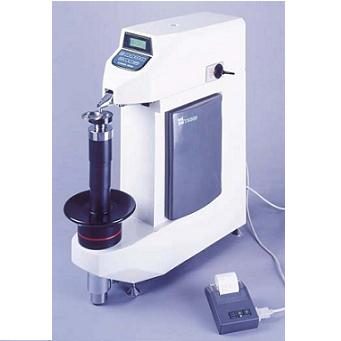

TH300 Rockwell °æµµ°è
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : Time
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

TH300 Rockwell Type Hardness Tester

Main Characteristic

  • Having horizontal "convex nose" structure
  • Tests on difficult to approach area
  • Tests internal surfaces of ring parts from 23mm diameter
  • Tests external surfaces of parts in form of round bars down to 3m diameter
  • Automatic test process
  • Simply and easy selectable operation menu
  • Clear matrix backlit LCD
  • RS-232 data output

Technical Specifications

Hardness parameters Rockwell A,B,C,D,E,F,G,H,K,L,M,P,R,S&V
Hardness resolution 0.1 of a Rockwell unit
Pre-load 10kgf (98.7N)
Total load 60kgf (588.4N),100kgf (980.7N), 150kgf (1471N)
Display  Matrix backlit LCD
Languages in the menu English, German, French
Data entry Membrane kaypad, menu driven
Test process  Automatic
Load duration 1-50 seconds, can be set or stored
Data output RS232 serial port for printer/computer
Menu features
  • Hardness tolerance setting (upper and lower limits)
  • Conversions: Vickers, Brinell, Rockwell superfical, UTS
  • Statistical data: X-bar, s, max, min
  • Automatic curvature correction for cylindrical and spherical surfaces
Application standard JB/T 74009-94,            ISO6508
Specimen accommodation
  • Vertical space 250mm(10")
  • Horizontal space (from center-line) 150mm(6")
Specimen access
  • External surfaces
  • Cylindrical surfaces down to 3mm diameter
  • Internal surfaces from 23mm diameter
Power supply  220V/110V, 50Hz, 4A
Dimensions Width 225mm, Depth 715mm, Height 790mm
Net weight 120kg
