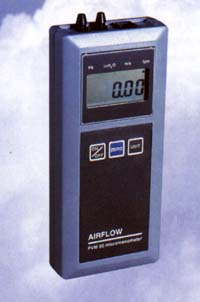

PVM50 MICROMANOMETER
Portable, Precise, Pressure Readings
The PVM50 micromanometer is a compact, hand held instrument designed to
measure pressure and air velocity, quickly and easily at the push of a
button.
This stylish meter is one of the lightest of its type and contains up
to the minute microprocessor technology ensuring superb accuracy at all
times. Combining the benefits of convenience and speed of use with simple
one handed operation PVM50 is the perfect choice for a wide range of air
measurement applications.
Readings in either metric or imperial display appear on the large clear
LCD. With direct readings of both pressure or air velocity the requirement
for further complex calculations is significantly reduced. PVM50 is also
one of the few portable electronic manometers currently available, which
in addition to differential pressure, can measure positive and negative
pressure with equal accuracy and without having to reverse the pressure
tube connections.
Outstanding accuracy is also a feature of PVM50 with high resolution
across a wide measuring range, enabling low pressure applications to be
measured with excellent accuracy as well as higher pressure systems.
Automatic zeroing is also very important in allowing the operator to check
the accuracy of the meter. This quick check only takes about 5 seconds to
complete and re-enforces both user and client confidence in the test data.
Calibrated to an Internationally recognised standard the PVM50 is
supplied with a FREE TRACEABLE CERTIFICATE OF
CALIBRATION and a reply card is also included for purchasers to
register with our FREE annual calibration reminder service.
All Airflow?Instruments, including the PVM50 are designed to help meet
the stringent requirements of the Control of Substances Hazardous to
Health (COSHH) and Building Regulations in the UK.
For our UK customers the reminder card service ensures valid
certification for COSHH, ISO9001 and Quality Assurance requirements.
THE PVM50 ADVANTAGE
FEATURES
- Velocity and pressure in metric or imperial readings
- Automatic zeroing
- Accuracy "in your hand"
- Digital readouts
- Reads positive and negative pressure with equal accuracy
BENEFITS
- Convenience with accuracy and precision
- Lightweight and easy to use
- Supplied with carry case and tubing
- Compatible with all pitot static tubes
- Two instruments in one case
APPLICATIONS
- HVAC systems
- Compliance with COSHH regulations
- Process monitoring
- Plant maintenance
- Filter condition checks
SPECIFICATION
| Parameter |
Metric |
Imperial |
| Pressure Range |
-250 to 2500 Pa |
-1 to 10" Wg |
| Velocity Range |
1.8 to 64 M/sec |
360 to 9990 ft/min |
| Maximum Overload |
34 KPa |
138" Wg |
| Resolution |
| Pressure |
1 Pa up to 2000 Pa
10 Pa up to 2500 Pa |
0.01" up to 10" Wg |
| Velocity |
0.1 M/sec |
10 ft/min |
| Accuracy |
| Pressure |
±1% of Reading ±1 Digit |
| Velocity |
±1.5% of Reading above 10 m/sec (2000
ft/min)
±1% FSD below 9.9 m/sec (1999 ft/min) |
| Operating Temperature |
0 to 50oC |
32o to 122oF |
| Power Supply |
1 Only 9v PP3 (IEC6F22) Alkaline Battery |
| Battery Life |
20 Hours Continuous Life (Alkaline
Battery) |
| Weight Less Battery |
280g |
10oz |
| Dimensions of Instrument |
190 x 81 x 33mm |
7.5 x 3.2 x 1.3" |
| Standard Accessories |
Carrying Case, Operating Manual |
| Optional Accessories |
Pitot Static Tubes, Telescopic Pitot
Static Tubes
Manometer Accessory Kit, AM2 Data Logger |
|
