상품 상세보기 : 압력 Pressure - EA212100 Calibration Pump, 0 to 150 PSI

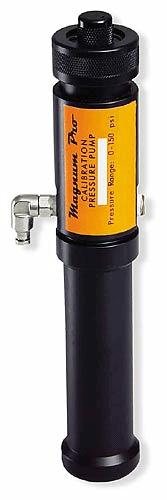

The Magnum Pro Calibration Pump is the most reliable, rugged pump for calibrations under 150 psi.

The Magnum Pro Calibration Pump is the most reliable, rugged pump for calibrations under 150 psi. Utilizing a "Schrader" valve, the Magnum totally eliminates vent valve failure. By eliminating needle valves and using Double O-rings, these pumps are leak free and virtually never need rebuilding. The thermal characteristics of the Delrin housing solve the problem of reading drift by eliminating heat transfer.

The unique hose and fittings simply push on to the unit, and a swivel keeps the hose from tangling. If the hose is damaged simply cut off the end and re-insert it into the fitting. Construction is so strong that the Magnum pumps can withstand repeated drops onto a concrete floor without damaging the unit.

A special, non-dispersing lubricant, makes the first stroke as easy as the rest, yet eliminates wear due to the grease migrating to the ends of the stroke. An optional hose kit is available eliminating the need for a "tee-fitting" when connecting a sensor and calibrator.

Features

No needle valves, “MASH-Proof” vent valve
Positive pressure version 0-150 psi
Vacuum version 0 to -28.8" Hg
Rugged Delrin and anodized aluminum construction
Dual O-rings on all pistons insures zero leakage
Unique swivel hose – snake proof
Rugged, damage resistant housing
Extra large vernier adjustment range
Two year quibble-free warrantee

SPECIFICATIONS

Model MP-P	0 to 150 PSI
Model MP-V	0 to –28"Hg
Size	9" long 1-1/2" dia
Connections	two 1/8" NPT female ports, one with a removable plug.

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

EA212100

MP-P

Calibration Pump, 0 to 150 PSI

Yes

810,000

Includes: Pump, and one hose assembly with the end as 1/4" NPT female.　

EA212101

MP-V

Calibration Pump, 0 to -28.8 PSI

Yes

810,000

Includes: Pump, and one hose assembly with the end as 1/4" NPT female.　

EA212102

OPTIONAL Hose Kit FOR Pressure and Vacuum Calibration Pump

Yes

105,840

EA212103

OPTIONAL Rebuilding Kit FOR Pressure and Vacuum Calibration Pump

Yes

Call 031-777-1588
