FN13113 Switch Pro
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:FN13113
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :

회원가입을 하시면 할인된가격을 보실수 있습니다.
모든가격은부가세별도 입니다.
회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
카드결재시 세금계산서 발행 불가합니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
Are best for more challenging, light to medium coating or scaling type liquids including wastewater
Select from three sensor technologies

Tuning Fork Sensors

Are best for more challenging, light to medium coating or scaling type liquids including wastewater, light brine, slurry, and caustic solutions.

Ultrasonic Sensors

Are best for relatively clean, light coating or scaling type liquids including treated water, printing ink, spent acid, solvent and light-weight oils. Available in PP, or Teflon™ PFA for increased chemical compatibility.

Buoyancy Sensors

Are best for clean, non-coating or scaling type liquids including process water, acid, and chemical solutions.

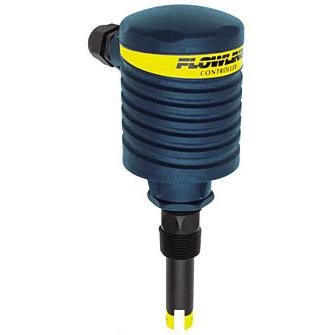

These versatile Switch Pro™ switches allow you to interface with a control device like a PLC, or connect directly to a pump or other equipment. Choose from three sensor technologies depending on your liquid. mount switches through the side of your tank—mount high to prevent spills, or low to protect your pump from running dry.

Switch Pro™ with compact junction box is ideal for interfacing with remote devices such as a PLC, SCADA, or alarm. For hazardous areas, select the ultrasonic sensor with the intrinsically safe output that switches between 4 or 20 mA.

Switch Pro™ with relay controller provides built-in SPDT relay for controlling pumps, valves, or alarms. LEDs give a visual indication of power and relay status. A relay time delay (0 to 60 sec) eliminates relay chatter.

Tech Tip

The fail-safe relay controller features a 10 amp relay with an adjustable time delay, LED indicators and invert switch for simple NO or NC operation. The rugged NEMA 4X enclosure is made of fire retardant polypropylene with a 300° rotational base.

Applications
  • Process vessels
  • Bulk storage tanks
  • Waste storage tanks



CAT NO MODEL DEscRIPTION AVAIL PRICE
FN13113   AZ13-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   712,800
Sensor Technology   Tuning fork
Sensor Material   PP/Rython®
Output Configuration   p-channel, FET
FN13114   AZ14-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   712,800
Sensor Technology
Sensor Material
Output Configuration   n-channel, FET
FN13115   AZ18-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   788,400
Sensor Technology
Sensor Material
Output Configuration   Relay, 1A
FN13116   AU10-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   756,000
Sensor Technology   Ultrasonic
Sensor Material   PP
Output Configuration   4 or 20 mA
FN13117   AU13-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   669,600
Sensor Technology
Sensor Material
Output Configuration   p-channel, FET
FN13118   AU14-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   669,600
Sensor Technology
Sensor Material
Output Configuration   n-channel, FET
FN13119   AU18-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   810,000
Sensor Technology
Sensor Material
Output Configuration   Relay, 1A
FN13120   AU10-2130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   972,000
Sensor Technology   Ultrasonic
Sensor Material   Teflon® PFA
Output Configuration   4 or 20 mA
FN13121   AU13-2130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   885,600
Sensor Technology
Sensor Material
Output Configuration   p-channel, FET
FN13122   AU14-2130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   885,600
Sensor Technology
Sensor Material
Output Configuration   n-channel, FET
FN13123   AU18-2130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   982,800
Sensor Technology
Sensor Material
Output Configuration   Relay, 1A
FN13124   AH16-1130   SWITCH PRO W/COMPACT JUNCTION BOX   Yes   378,000
Sensor Technology   Buoyancy
Sensor Material   PP
Output Configuration   Reed, 15 VA
FN13125   AZ13-1120   SWITCH PRO W/RELAY CONTROLLER   Yes   1,047,600
Sensor Technology   Tuning fork
Sensor Material   PP
Output Configuration   Relay, SPDT 250 VAC, 10 A
Models are intrinsically safe. CSA approval: Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class II. CSA entity parameters: Vmax=32 VDC, =0.5 A, Ci = 0, Li =0
FN13126   AU13-1120   SWITCH PRO W/RELAY CONTROLLER   Yes   378,000
Sensor Technology   Ultrasonic
Sensor Material   PP
Output Configuration   Relay,SPDT 250 VAC, 10 A
Models are intrinsically safe. CSA approval: Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class II. CSA entity parameters: Vmax=32 VDC, =0.5 A, Ci = 0, Li =0
FN13127   AU13-2120   SWITCH PRO W/RELAY CONTROLLER   Yes   1,242,000
Sensor Technology   Ultrasonic
Sensor Material   Teflon® PFA
Output Configuration
Models are intrinsically safe. CSA approval: Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class II. CSA entity parameters: Vmax=32 VDC, =0.5 A, Ci = 0, Li =0
FN13128   AH13-1120   SWITCH PRO W/RELAY CONTROLLER   Yes   645,840
Sensor Technology   Buoyancy
Sensor Material   PP
Output Configuration
Models are intrinsically safe. CSA approval: Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class II. CSA entity parameters: Vmax=32 VDC, =0.5 A, Ci = 0, Li =0
