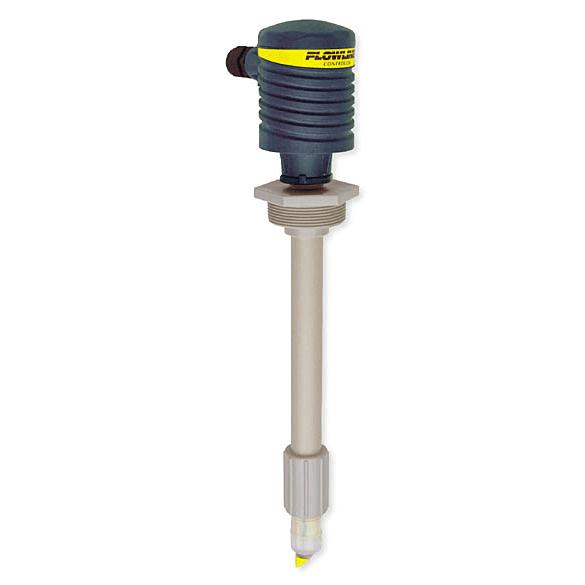

FN13423 1 FT. Level Switches, Float Sensors PP,
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:FN13423
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :

회원가입을 하시면 할인된가격을 보실수 있습니다.
모든가격은부가세별도 입니다.
회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
카드결재시 세금계산서 발행 불가합니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
Are best for clean, non-coating or scaling type liquids including process water, acid and chemical solutions.
Select from three sensor technologies

Float Sensors

Are best for clean, non-coating or scaling type liquids including process water, acid and chemical solutions.

Ultrasonic Sensors

Are ideal for relatively clean, light coating or scaling type liquids including treated water, printing ink, spent acid, solvent and light-weight oils.

Tuning Fork Sensors

Are perfect for more challenging, light to medium coating or scaling type liquids including wastewater, light brine, slurry, and caustic solutions.

Features
  • Three sensor technologies to match your application needs—float, ultrasonic, and tuning fork
  • Choose PP or PVDF for chemical compatibility with most liquids
  • High or low relay switch with one switch point controls pump, valve, or alarm directly
  • Eliminate relay chatter with 0 to 60 second time delay
  • Models with alarm include a strobe light to indicate an activated relay

Applications
  • Bulk storage tanks
  • Waste storage tanks
  • Waste treatment tanks

CAT NO MODEL DEscRIPTION AVAIL PRICE
FN13423   AV13-4223-12   1 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   669,600
FN13424   AV13-4223-24   2 FT.LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   680,400
FN13425   AV13-4223-36   3 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   691,200
FN13426   AV13-4223-48   4 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   702,000
FN13427   AV13-4223-60   5 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   712,800
FN13428   AV13-4223-72   6 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   723,600
FN13429   AV13-4223-84   7 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   734,400
FN13430   AV13-4223-96   8 FT. LEVEL SWITCHES, FLOAT SENSORS PP,   Yes   745,200
FN13463   AV13-4213-12   1 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   777,600
FN13464   AV13-4213-24   2 FT. LEVEL SWITCHES W/ALARM, FLOAT SENSOR, PP,   Yes   788,400
FN13465   AV13-4213-36   3 FT. LEVEL SWITCHES W/ALARM, FLOAT,SSR, PP,   Yes   799,200
FN13466   AV13-4213-48   4 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   810,000
FN13467   AV13-4213-60   5 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   820,800
FN13468   AV13-4213-72   6 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   831,600
FN13469   AV13-4213-84   7 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   842,400
FN13470   AV13-4213-96   8 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PP,   Yes   853,200
FN13431   AV13-5223-12   1 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   993,600
FN13432   AV13-5223-24   2 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,047,600
FN13433   AV13-5223-36   3 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,101,600
FN13434   AV13-5223-48   4 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,155,600
FN13435   AV13-5223-60   5 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,209,600
FN13436   AV13-5223-72   6 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,263,600
FN13437   AV13-5223-84   7 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,317,600
FN13438   AV13-5223-96   8 FT. LEVEL SWITCHES, FLOAT SENSORS PVDF,   Yes   1,371,600
FN13471   AV13-7003-12   1 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,101,600
FN13472   AV13-7003-24   2 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,155,600
FN13473   AV13-7003-36   3 FT. LEVEL SWTICHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,209,600
FN13474   AV13-7003-48   4 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,263,600
FN13475   AV13-7003-60   5 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,317,600
FN13476   AV13-7003-72   6 FT. LEVEL SWITCHES W/ALARMS, FLOATSSR, PVDF,   Yes   1,371,600
FN13477   AV13-7003-84   7 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,425,600
FN13478   AV13-7003-96   8 FT. LEVEL SWITCHES W/ALARM, FLOAT SSR, PVDF,   Yes   1,479,600
N13439   AU13-4223-12   1 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,026,000
FN13440   AU13-4223-24   2 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,036,800
FN13441   AU13-4223-36   3 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,047,600
FN13442   AU13-4223-48   4 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,058,400
FN13443   AU13-4223-60   5 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,069,200
FN13444   AU13-4223-72   6 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,080,000
FN13445   AU13-4223-84   7 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,090,800
FN13446   AU13-4223-96   8 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,101,600
FN13479   AU13-4213-12   1 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,134,000
FN13480   AU13-4213-24   2 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,144,800
FN13481   AU13-4213-36   3 FT. LEVEL SWITCHES, ULTRASONIC SSRPP,   Yes   1,155,600
FN13482   AU13-4213-48   4 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,166,400
FN13483   AU13-4213-60   5 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,177,200
FN13484   AU13-4213-72   6 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,188,000
FN13485   AU13-4213-84   7 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,198,800
FN13486   AU13-4213-84   8 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PP,   Yes   1,209,600
FN13447   AU13-5223-12   1 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,350,000
FN13448   AU13-5223-24   2 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,404,000
FN13449   AU13-5223-36   3 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,458,000
FN13450   AU13-5223-48   4 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,512,000
FN13451   AU13-5223-60   5 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,566,000
FN13452   AU13-5223-72   6 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,620,000
FN13453   AU13-5223-84   7 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,674,000
FN13454   AU13-5223-96   8 FT. LEVEL SWITCHES, ULTRASONIC SSRPVDF,   Yes   1,728,000
FN13487   AU13-7003-12   1 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,458,000
FN13488   AU13-7003-24   2 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,512,000
FN13489   AU13-7003-36   3 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,566,000
FN13490   AU13-7003-48   4 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,620,000
FN13491   AU13-7003-60   5 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,674,000
FN13492   AU13-7003-72   6 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,728,000
FN13493   AU13-7003-84   7 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,566,000
FN13494   AU13-7003-96   8 FT. LEVEL SWITCHES W/ALARM, ULTRA SONIC, PVDF,   Yes   1,836,000
FN13455   AZ13-4223-12   1 FT. LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,069,200
FN13456   AZ13-4223-24   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,080,000
FN13457   AZ13-4223-36   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,090,800
FN13458   AZ13-4223-48   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,101,600
FN13459   AZ13-4223-60   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,112,400
FN13460   AZ13-4223-72   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,123,200
FN13461   AZ13-4223-84   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,134,000
FN13462   AZ13-4223-96   LEVEL SWITCHES, TUNING FORK SENSOR, PP,   Yes   1,144,800
FN13495   AZ13-4213-12   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,188,000
FN13496   AZ13-4213-24   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,188,000
FN13497   AZ13-4213-36   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,198,800
FN13498   AZ13-4213-48   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,209,600
FN13499   AZ13-4213-60   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,220,400
FN134100   AZ13-4213-72   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,231,200
FN134101   AZ13-4213-84   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,242,000
FN134102   AZ13-4213-96   LEVEL SWITCHES W/ALARM, TUNINGFORK SSR, PP   Yes   1,252,800
FN501001   LM50-1001   SIDE MOUNT BRACKET   Yes   64,800
Please inquire for NIST Certification
