| Handy sensor. Suitable for monitoring operations in climatology
|
FHA6461x Capacitive
Humidity Sensor Type
● Handy sensor
● Suitable for
monitoring operations in climatology

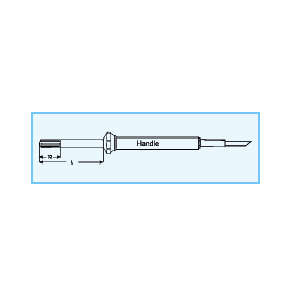

| Types: |
| FHA64611 |
Length L = 122mm |
| FHA64612 |
Length L = 262mm |
| FHA64613 |
Length L = 522mm |
Accessories:
| ZA9060VK2 |
Extension cable, 2 meters long |
| ZA9060VK4 |
Extension cable, 4 meters long |
|
| Technical Data: |
| Operative range : |
-20 to +60 °C / 5 to 98 % r.H. |
| Humidity Measuring Circuit |
| Measuring range: |
5 to 100 % r.H. |
| Sensor: |
capacitive |
| Accuracy: |
±2% r.H. at nominal temperature |
| Reproducibility: |
< 1% r.H. at nominal temperature |
| Nominal temperature: |
25°C ±3°C |
| Sensor operating pressure: |
atmospheric pressure |
| Response time T90: |
approx. 10s (without filter) at 5m/s |
| Temperature Measuring Circuit |
| Sensor: |
NTC type N |
| Accuracy: |
-20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 80°C: ±0.6°C |
| Reproducibility: |
0.1°C |
| Mechanical Construction |
| Sensor tube: |
aluminium, 12mm Ø |
| Protective cap: |
SK7, metal-mesh filter |
| Cable: |
1.5m long, ALMEMO® connector |
|
FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity
sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm
Types : |
| |
Type |
Designation |
Pore-
size |
Maximum
temperature |
Typical Application |
| SK7 |
ZB9600SK7 |
Metal-mesh filter in
PC-housing |
100 μm |
120°C |
Universal, for medium,
contamination, also high humidity |
| SK6 |
ZB9600SK6 |
PTFE-Sinterfilter |
50 μm |
180°C |
High chemical resistance |
| SK8 |
ZB9600SK8 |
Stainless steel
sinter filter |
10 μm |
180°C |
For severe mechanical stress,
heavy contamination,
strong air flow |
Brackets for wall mounting
|
Movable
screw connection
|
| ZB9600W |
Brackets for wall
mounting, distance from
wall approx. 40 mm |
ZB9600KV |
Movable aluminum screw connection
with Teflon sealing ring |
| ZB9600F |
Connecting flange for screw connection,
hole circle 38 mm Ø |
| |
|
|
 | |
 |
|
 |
|
