| Compact sensor integrated into ALMEMO® connector. Suitable for control and long term measurements in climatology.
|
FHA6466 Capacitive
Humidity Sensor Type
● Compact sensor integrated
into ALMEMO® connector.
● Suitable for
control and long term measurements in
climatology.
☞ When connecting the humidity
sensor on certain devices, other input sockets are partly covered. If these
input sockets are also required, connecting cable ZA9060AK1 or sensor type
FHA6461 should be used.
| Types: |
| FHA6466 |

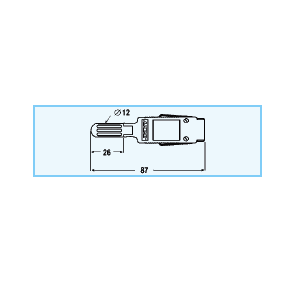

Length 87mm |
Accessories:
ZA9060AK1 Connecting
cable, 0.2 m |
| Technical Data: |
| Operative range : |
-20 to +60 °C / 5 to 98 % r.H. |
| Humidity Measuring Circuit |
| Measuring range: |
0 to 100 % r.H. |
| Sensor: |
capacitive |
| Accuracy: |
±2% r.H. at nominal temperature |
| Reproducibility: |
< 1% r.H. at nominal temperature |
| Nominal temperature: |
25°C ±3°C |
| Sensor operating pressure: |
atmospheric pressure |
| Response time T90: |
approx. 10s (without filter) at 5m/s |
| Temperature Measuring Circuit |
| Sensor: |
NTC type N |
| Accuracy: |
-20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 80°C: ±0.6°C |
| Reproducibility: |
0.1°C |
|
| |
|
|
 | |
 |
|
 |
|
