| Capacitive Humidity Sensor Type Compact sensor with extremely small dimensions. |
FHA646R
Capacitive Humidity Sensor Type
● Compact sensor with
extremely small dimensions.
● Particularly
suitable for measurements between PCBs, within housings, in walls, ceilings,
and insulations used in structural engineering and protection of historic
monuments.
● Sensor usable
in the range -30 … 100°C/5 … 98% r.H.
| Types: |
| FHA646R |
Length 50mm |
Accessories:
| ZA9060VK2 |
Extension cable, 2m long |
| ZA9060VK4 |
Extension cable, 4m |
|
| Technical Data: |
| Operative range : |
-30 to +100 °C / 5 to 98 % r.H. |
| Humidity Measuring Circuit |
| Measuring range: |
0 to 100 % r.H. |
| Sensor: |
capacitive |
| Accuracy: |
±2% r.H. at nominal temperature |
| Reproducibility: |
< 1% r.H. at nominal temperature |
| Nominal temperature: |
25°C ±3°C |
| Response time T63: |
approx. 10s at 1m/s |
| Temperature Measuring Circuit |
| Sensor: |
NTC type N |
| Accuracy: |
-20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 100°C: ±0.6°C |
| Reproducibility: |
0.1°C |
| Mechanical Construction |

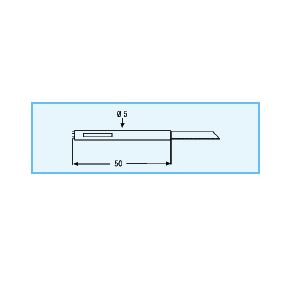

| Sensor tube: |
nickel plated, 50mm long, 5mm Ø |
| Protective cap: |
none |
| Cable: |
2m long, ALMEMO® connector |
|
| |
|
|
 | |
 |
|
 |
|
