High-temperature cable sensor with transmitter, suitable for fixed installation

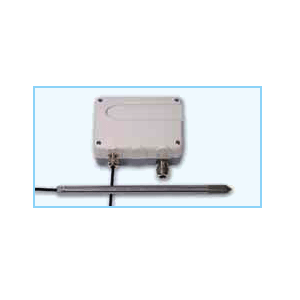

MT8636HR6 High-temperature moisture transmitter Type

● High-temperature cable sensor with transmitter, suitable for fixed installation
● Analog output range, scalable to -40 to +180 °C / 0 to 100 % r.H.
● Analog output type, 0 to 10 V standard (0 to 5 V or 0/4 to
20 mA also available from the factory)
● Pressure-sealed, up to 15 bar, available on request

Types :
MT8636HR6	High-temperature moisture transmitter with sensor cable, 2 meters long
ZA8636HR6AK	ALMEMO® connector cable, 2 meters long, PVC including ALMEMO® connector and mains adapter ZB1012NA1, 12 V / 200 mA

Options:

OT8636HR6L05	High-temp. sensor cable, 5 meters
OT8636HR6L10	High-temp. sensor cable, 10 meters
OT8636HR6L20	High-temp. sensor cable, 20 meters

Technical data :
Operative range Sensor, including sensor cable : -40 to +180 °C Electronics housing : -40 to +60 °C
Humidity measuring circuit
Measuring range :	0 to 100 % r.H.
Sensor :	capacitive
Accuracy :	± 2 % r.H. in range 0 to 90 % r.H. ± 3 % r.H. in range 0 to 100 % r.H. each at nominal temperature
Nominal temperature :	+23 °C ± 3 K
Response time :	<10 seconds without filter
Temperature measuring circuit
Sensor:	Pt1000
Accuracy :	DIN EN 60751, class A
Electrical data
Supply voltage :	8 to 48 V DC / 12 to 35 V AC
Power consumption at 24 V	typical 40 mA / 1 W (V output) typical 80 mA (mA output)
Mechanical data
Sensor :	stainless steel, L=238mm, d=12mm
Protective cap :	sintered stainless steel filter
Sensor cable	2 meters long, optional : 5/10/20 m
Electronics housing :	plastic PC, 135 x 90 x 87 mm

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type

Dimensions : length approx. 33 mm, diameter 12 mm

Types :
	Type	Designation	Pore- size	Maximum temperature	Typical Application
SK7	ZB9600SK7	Metal-mesh filter in PC-housing	100 μm	120°C	Universal, for medium, contamination, also high humidity
SK6	ZB9600SK6	PTFE-Sinterfilter	50 μm	180°C	High chemical resistance
SK8	ZB9600SK8	Stainless steel sinter filter	10 μm	180°C	For severe mechanical stress, heavy contamination, strong air flow

Brackets for wall mounting		Movable screw connection
ZB9600W	Brackets for wall mounting, distance from wall approx. 40 mm	ZB9600KV	Movable aluminum screw connection with Teflon sealing ring
		ZB9600F	Connecting flange for screw connection, hole circle 38 mm Ø
