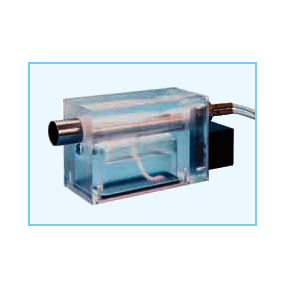

| Psychrometer type Optimized version for long-term measuring operations |
FPA8363
Psychrometer type
● Optimized version
for long-term measuring operations
● Especially
suitable for high temperatures
● Operating
range 0 to 90 °C / 10 to 100 % r.H.
● Available
values :
dry temperature, relative humidity, dew point, mixture ratio,
humid temperature, partial vapour pressure
☞ For precision measuring operations
the current
atmospheric pressure can be entered in ALMEMO®
devices and the measured value will then be corrected
automatically.
Accessories:
| FDA612MA |
Measuring module
for barometric pressure |
| ZA9060AK1 |
Connecting cable, 0.2 m
for pressure measuring module |
| ZB98462ED |
Spare wicks (2 pieces) |
| ZB5090VK05 |
Extension cable for mains supply units
with 3-pin bayonet coupling,
length : 5 meters |
|
| Technical Data: |
| Humidity |
| Measuring range : |
10 to 100 % r.H. |
| Measuring type : |
psychrometric |
| Accuracy : |
±1% r.H. under nominal conditions |
| Reproducibility : |
< 1% r.H. |
| Nominal conditions : |
25 ± 3 °C , 1013 mbar, 50% r.H. |
| Temperature FPA8363 |
| Sensor: |
2 x Pt100 |
| Accuracy: |
IEC 751, IEC 751, class B
ALMEMO® adjusted |
| Electrical supply |
| Operating voltage : |
12 V DC via mains supply unit
(cable approx. 2 meters) |
| Current consumption |
approx. 40 mA |
| Mechanical construction |
| Housing : |
plastic polycarbonate |
| Dimensions : |
L 175 x W 50 x H 75 |
| Weight : |
approx. 890 g |
| Cable : |
PVC (up to 90°C),
5 m with ALMEMO® connector
FNA8463 : 1 cable / 1 connector
FPA8363 : 2 cables / 2 connectors |
|
| Types: |
| |
(including mains supply unit, water bottle,
two wicks) |
| FPA8363 |
Psychrometer with 2 x Pt100 sensors including connecting
cable (two ALMEMO® connectors) |
|
| |
|
|
 | |
 |
|
 |
|
