| Consisting of one temperature sensor and an integrated sensor chip with CCC dew point sensor. |
FHA9461 Dew
Point Detector Type
● Dew detector for
determination of dew conditions.
● Consisting
of one temperature sensor and an integrated sensor chip with CCC dew point
sensor.
● Particularly
suitable in building physics for control
measurements and stationary installation.
● The dew point
detector does not provide a measuring signal but a step function: dewed
(100%)/ no dew (0%).
| Types: |
| FHA9461 |

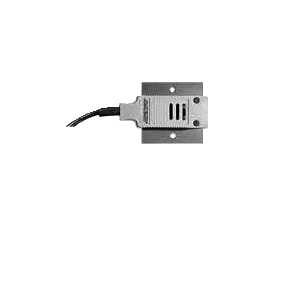

Sensor and electronics
integrated in ALMEMO® connector,
mounted on heat conducting
plate made of aluminium |
|
| Technical Data: |
| Principle of measurement: |
CCC sensor |
| Operative range: |
0°C to +70°C
(no ice formation,
no saliferous atmosphere) |
| Settling time: |
final value after 2 to 60 seconds |
| Temperature sensor: |
NTC type N (10k at 25°C),
accuracy: ±0.1°C
(within operative range) |
| Signal output: |
scaled voltage approx. 0 to 1V |
| Current consumption: |
approx. 3mA |
| Heat flow plate: |
aluminium, 40 x 40mm |
| Storage temperature: |
-10°C to +70°C |
|
| |
|
|
 | |
 |
|
 |
|
