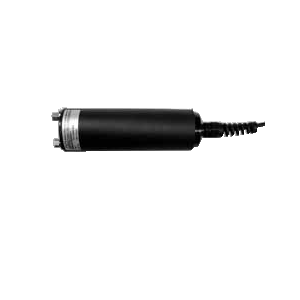

| Water detection probe for instant detection of uncombined water. |
FHA936WD Water
Detection Probe Type
● Water detection probe
for instant detection of uncombined
water.
● Particularly
suitable for construction applications, especially in locations that are
difficult to check visually, e.g. at sealing
joints, under cement floors etc.
● Indirect moisture
measurement according to the principle of
conductivity.
● Probe with
two collets for easy electrode replacements.
● Electrodes
in three different designs for matching any
required application.
| Types: |
| FHA936WD |
Water detection probe |
|
| Technical Data: |
| Measuring method: |
detection of water |
| Meas. values: |
<10% no water
>10% water |
| Housing: |
plastic handle
40mm Ø, 130mm long |
| Electrodes: |
stainless steel |
| Electrode types: |
uninsulated with rounded tip:
200mm long, 3mm Ø
uninsulated with sharp-edged tip:
50mm long, 3mm Ø
spring steel strap:
200mm long, 6mm wide, 0.5mm high |
| Weight: |
260g |
| Nominal temperature: |
23°C ±2°C |
| Operating temperature: |
0 to +60°C |
| Storage temperature: |
-20 to +80°C |
| Signal output: |
ALMEMO® (approx. 0 to 2V) |
| Power supply: |
7.5 to 15V |
| Current consumption |
max. 10mA |
|
| |
|
|
 | |
 |
|
 |
|
