| Moisture sensor for determination of the moisture content in mineral construction materials, wood and cardboard. |

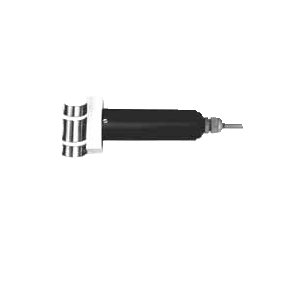

FHA696MF Moisture
Sensor Type
● Moisture sensor for
determination of the moisture content in mineral construction materials,
wood and cardboard.
● Indirect measurement
of the moisture through the
determination of the dielectric constant.
● Capacity measurement
through a high frequency electromagnetic field, which penetrates the material
in a nondestructive way.
Accessories:
| ZB9696PE05 |
Test block for min. construct. materials |
| ZB9696PE30 |
Test block for wood, paper, cardboard |
| Types: |
| FHA696MF |
Moisture sensor |
|
| Technical Data: |
| Measuring method: |
capacitive |
| Resolution: |
0.1% |
| Measuring range (moisture): |
0 to 50% moisture |
| Measuring range (material): |
mineral construction materials 0 to 20%, woods 0
to 50%, paper and cardboard 0 to 20% |
| Housing: |
plastic handle with integrated
electronics 40mm Ø, 130mm long |
| Terminal block: |
aluminium/plastic
20 x 25 x 70mm |
| Measuring comb: |
stainless spring steel
0.5mm, 70 x 35mm |
| Weight: |
260g |
| Nominal temperature: |
15 to 25°C |
| Operative range: |
0 to +60°C |
| Storage temperature: |
-20 to +80°C |
| Signal output: |
0 to 2V |
| Power supply: |
+8 to +12V |
| Current consumption |
approx. 7mA |
|
| |
|
|
 | |
 |
|
 |
|
