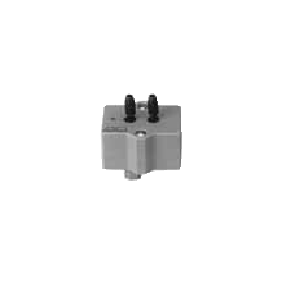

| Pressure modules with compact design for flow measurements with Pitot tubes. |
FD A602 M6
Pressure Modules for Differential Pressure
and Pitot Tubes Type
● Pressure
modules with compact design for flow
measurements with Pitot tubes.
● Fitting
for connecting hose between Pitot tube and pressure module.
● Pressure
modules can be directly plugged onto the measuring instruments.
☞ When attaching the measuring module
other input
sockets will be blocked. If the blocked input sockets need to be used or
if the module can be directly installed at the measuring location, an extension
cable ZA 9060-VKx (maximum length 5m) can be used.
Accessories:
| ZA9060AK1 |
Connecting cable
for pressure measuring module, 0.2m |
| ZA9060VK2 |
Extension cable, 2 m long |
| ZB2295S |
One set of silicone hoses,
black / colorless, 2 m long |
| ZB2295SSL |
Silicone hose, black, per meter |
| ZB2295SFL |
Silicone hose, colorless, per meter |
|
| Technical Data: |
| Accuracy (zero-pt adjusted): |
±0.5% (typ. 0.2%)
of final value |
| Nominal temperature: |
22°C ±2°C |
| Temperature drift: |
max. 1.5% (typ. 0.5%) of final
value |
| Sensitivity to position: |
±5Pa
FDA602M1K pos.-independent |
| Overload capacity: |
maximum triple
measuring range |
| Max. common mode pressure: |
300kPa (3bar) |
| Operating range: |
-10 to +60°C,
10 to 90% r.H.
non-condensing |
| Dimensions: |
37 x 36 x 22mm |
| Hose connection: |
Ø 5mm, 12mm long |
| Sensor material: |
aluminium, nylon, silicone,
silica gel |
| Temperature compensation: |
effective in range
-50.0 … +700.0°C |
| Types: |
| FDA602M6 |
Meas. ranges: ±6800Pa,
diff. pressure (2 to 90m/s),
meas. variables: m/s, Pa |
▒ For
precise measurements in m/s the wind tunnel
temperature can be entered for compensation into the
ALMEMO® devices. |
| |
|
|
 | |
 |
|
 |
|
