| Pressure modules with compact design for flow measurements with Pitot tubes. |

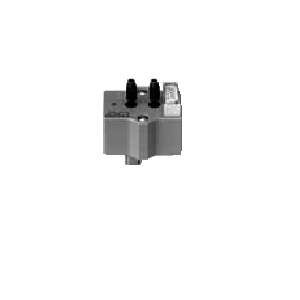

FD A622 M1K
Pressure Modules for Differential Pressure
and Pitot Tubes Type
● Pressure
modules with compact design for flow
measurements with Pitot tubes.
● Fitting
for connecting hose between Pitot tube and pressure module.
● Pressure
modules can be directly plugged onto the measuring instruments.
● Socket
for connection of an additional temperature sensor for temperature compensation.
● Particularly
suitable for stationary wind velocity
measurements with continuously changing temperatures.
☞ When attaching
the measuring module other input
sockets will be blocked. If the blocked input sockets need
to be used or if the module can be directly installed at
the measuring location, a pressure module type
FDA602M1K/M6 with extension cable ZA9060VKx (max.
5m) must be used. The temperature sensor must then
be connected via a second device input socket and
programmed as a compensation sensor.
Accessories:
| FTA225 |
NiCr-Ni jacket thermocouple TK 125:
1mm Ø, protecting tube 4mm Ø with handle,insertion depth 300mm,cable
length 1.2m |
| FTA4313L |
NiCr-Ni jacket thermocouple T 431 3L:
1.6mm Ø, without handle 300mm long,
cable length 2m |
| ZB2295S |
1 set silicone hoses
black/colourless 2m long |
| ZB2295SSL |
Silicone hose black per m |
| ZB2295SFL |
Silicone hose colourless per m |
|
| Technical Data: |
| Accuracy (zero-pt adjusted): |
±0.5% (typ. 0.2%)
of final value |
| Nominal temperature: |
22°C ±2°C |
| Temperature drift: |
max. 1.5% (typ. 0.5%) of final value |
| Sensitivity to position: |
±5Pa
FDA622M1K pos.independent |
| Overload capacity: |
maximum triple
measuring range |
| Max. common mode pressure: |
300kPa (3bar) |
| Operating range: |
-10 to +60°C,
10 to 90% r.H.
non-condensing |
| Dimensions: |
37 x 36 x 22mm |
| Hose connection: |
Ø 5mm, 12mm long |
| Sensor material: |
aluminium, nylon, silicone,
silica gel |
| Temperature compensation: |
effective in range
-50.0 … +700.0°C |
| Types: |
| FDA622M1K |
Meas. ranges: 1 to 40m/s,
position-independent
with automatic temperature
compensation for Pitot tubes,
meas. variables: m/s, °C |
▒ All
ALMEMO® NiCr-Ni temperature sensors can be used
as temperature sensors for the automatic temperature
compensation.
These measuring modules are only designed for wind
velocity measurements.
They cannot perform any pressure measurements. |
| |
|
|
 | |
 |
|
 |
|
