● Probe
tube with heated miniature thermistor for flow
measurement and precision NTC resistance for measuring the ambient temperature
and automatic compensation.
● Evaluation
electronics are located in a separate sensor transmitter module.
● High
accuracy as a result of integrated temperature
compensation and individual calibration in wind tunnel, with laser Doppler
anemometer as reference system.
● Response
time only 2s for smoothing the measured value indicated, optionally without
smoothing with 100ms response time.
● Suitable
for measuring small flow velocities in gaseous substances, particularly
for control systems and monitoring.
● Typical
applications include comfort index measurements, HEVAC applications, environmental
technology, clean room technology and process measuring and control technology.
▒ A special connector cable allows to connect the flow
sensors to all ALMEMO® multi-purpose devices, data
loggers and data acquisition systems. For volume flow
rate measurements the cross section of the ventilating
shaft can be easily entered into ALMEMO® devices. A
problem-free averaging is then possible.

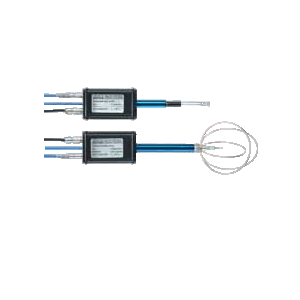

Types (incl. clamping holder
and ALMEMO® connecting cable 1.5m long): |
Unidirectional (sensitive in one direction)
with protected measuring tip |
| FVA605TA1 |
Measuring range 0 to 1m/s |
| FVA605TA5 |
Measuring range 0 to 5m/s |
| Omnidirectional (direction-independent,
symmetrical ball tip) with protecting cage (Ø110mm) including carry-case |
| FVA605TA1O |
Measuring range 0 to 1m/s |
| FVA605TA5O |
Measuring range 0 to 5m/s |
|
| Technical Data: |
| Electronics Box with Sensor |
Measuring range:
FV A605 TA1(O)
FV A605 TA5(O) |
0.01 to 1m/s
0.15 to 5m/s |
Resolution:
FV A605 TA1(O)
FV A605 TA5(O) |
0.001m/s
0.01m/s |
Accuracy:
FV A605 TA1(O)
FV A605 TA5(O) |
±1.0% of final value and
±1.5% of meas. value
±0.5% of final value
±1.5% of meas. value |
| Nominal conditions: |
22°C, 960hPa |
Automatic
temperature compensation: |
effective in range 0 to 40° |
| Temperature influence: |
±0.5% of fin. value/°C |
| Sensor |
| Head size: |
Ø 8mm |
| Shaft: |
Ø 15mm |
| Operative range: |
0 to 40°C |
Angle of attack:
FV A605 TA1/TA5
FV A605 TA1O/TA5O |
±30°
±180° |
Inlet opening:
FV A605 TAx:
FV A605 TAxO: |
9mm
protecting cage |
Sensor length:
FV A605 TAx:
FV A605 TAxO |
300m
310mm |
| Sensor cable length: |
1.5m |
| Storage temperature: |
-30 to +90°C |
| General Technical Specifications |
| Measurement medium: |
dry air or inert |
| Response time: |
standard:
smoothened: 1 τ = 2s
option OAA605TAU:
not smoothened: 1 τ = 100ms |
| Power supply: |
through ALMEMO® device
(approx. 7… 10V) |
| Current consumption: |
approx. 70mA |
| Output signal: |
0 … 1V, linearised,
load resistance min. 10kohms |
Housing:
Dimensions:
Protection system:
Weight:
|
100 x 60 x 35mm (L x W x H)
IP 40 (aluminium housing)
approx. 250g |
| Operating temperature: |
0 to 40 |
| Storage temperature: |
-30 to 90°C |
| Air humidity: |
0 … 90% r.H., non-condensing |
| Adjusting reference: |
laser Doppler wind tunnel,
adjustment at 22°C/approx.
960hPa, (certificate according
to SN EN 45001) |
|
