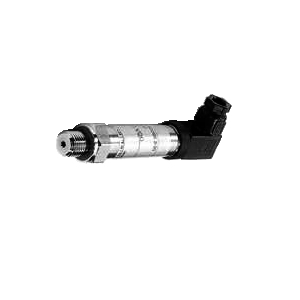

FDA602L Pressure
Transducer Type
● Compact pressure
sensors for industrial applications
in liquid and gaseous substances.
● Piezo-resistive,
flexibly suspended silicone measuring cell in an oil-filled, all-welded
special steel enclosure.
● The stable
mechanical construction provides a reliable
protection for the measuring cell against the test
substance and immunes it against pressure peaks and vibrations.
● Available
with three calibrations.
Relative pressure: pressure related to the environmental press.
Absolute pressure: pressure related to vacuum (0 bar)
Overpressure: pressure related to atm. pressure at
manufacturing (approx. 1bar).
Accessories:
ZB9060K(L) Longer cable,
please specify length (L)
| Types: |
| including ALMEMO® cable 1.5m long |
| Measuring ranges relative pressure: |
| FDA602L3R |
up to 2.5 bar |
| FDA602L5R |
up to 10 bar |
| Measuring ranges absolute pressure: |
| FDA602L4A |
up to 5 bar |
| FDA602L5A |
up to 10 bar |
| Measuring ranges excess pressure: |
| FDA602L2U |
up to 25 bar |
| FDA602L3U |
up to 50 bar |
| FDA602L4U |
up to 100 bar |
|
| Technical Data: |
| Overload : |
1.3 times the final value |
| Output signal: |
0.2 … 2.2V |
| Response time: |
< 2ms |
Category of accuracy: ±1%
of final value
(linearity + hysteresis
+ reproducibility) |
| Linearity: |
0.5% max. |
Total error range*:
+18 … +22°C: 1%
max. / 0.5% typ.
0 … +18 / +22 … +50°C: 2%
max. / 1% typ.
-20 … 0 / +50 … +80°C: 4%
max. / 2.5% typ.
* including linearity, hysteresis, zero point and sensitivity,
temperature effects, reproducibility |
| Nominal conditions: |
22°C ± 2K, 10 to 90% rH
non-condensing |
| Power supply: |
6 to 15VDC, <4 mA |
| Housing: |
<25 bar: special steel 1.4301
>25 bar: special steel 1.4571 |
| Pressure sensor membrane: |
special steel 1.4435 |
| Operating temperature: |
-20 to +80°C |
| Fitting: |
ext. thread G1/4”, membrane
not flush with front |
| Pressure medium: |
compatible with stainless steel |
| Weight: |
75g |
| Electromagn. compatibility: |
CE marked: test acc. to IEC
801.2 and 802.2 |
| Protection system: |
IP 65 |
| Insulation: |
> 100MΩ / 50VDC |
| Insulation test: |
1 minute at 500VDC |
|
| |
|
|
 | |
 |
|
 |
|
