| Pressure transducer for measuring the temperature of refrigerants, absolute pressure Type |
FDA602LxAK Pressure transducer for measuring the temperature
of refrigerants, absolute pressure Type
● for ALMEMO devices V5, with refrigerants option
SB0000R
|
| Technical Data: |
| as for FDA602L
except : |

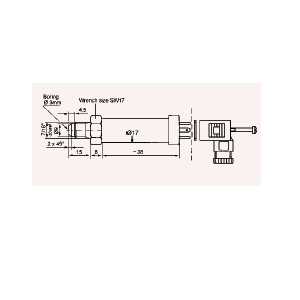

| Pressure connection : |
external thread 7/16”
membrane not flush
with front: |
| Types: |
including ALMEMO®
connecting cable, 1.5 m,
and programming of a refrigerant measuring channel |
Measuring ranges Absolute pressure
(resolution 0.001 bar) |
| FDA602L5AK |
up to 10bar |
| FDA602L6AK |
up to 30bar |
| available on request |
up to 50bar |
|
| Technical data for ALMEMO®
option SB 0000 R: |
| Refigerant: |
R22 |
R23 |
R134a |
R404a |
| Pressure Range: |
0 to 36 bar |
0 to 49 bar |
0 to 40,5 bar |
0 to 32 bar |
| Temperature Range: |
-90°C to +79°C * |
-100°C to +26°C * |
-75°C to +101°C |
-60°C to +65°C |
Refigerant: |
R407C |
R410 |
R417A |
R507 |
| Pressure Range: |
0 to 46 bar |
0 to 49 bar |
0 to 27 bar |
0 bis 37 bar |
| Temperature Range: |
-50°C to +86°C * |
-70°C to +70°C |
-50°C to +70°C |
|
| |
|
|
 | |
 |
|
 |
|
