FD8214 Temperature-Compensated Pressure Sensors Type
    · 고객선호도 :
    · 시중가격 : 원
    · 판매가격 : 원
    · 포 인 트 : 점
    · 수 량 : 개


■
회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
Compact pressure sensors for liquid and gaseous substances.

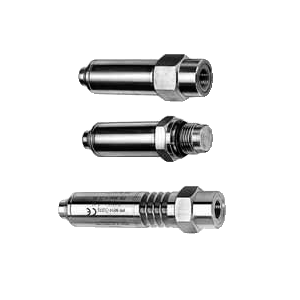

FD8214
Temperature-Compensated Pressure Sensors Type
● Compact pressure sensors for liquid and gaseous substances.
● Piezo-resistive measuring cell with temperature
compensation.
● Pressure membrane and enclosure made from special steel.
● Available with three calibrations.
Relative pressure:
pressure related to the environmental pressure
Absolute pressure:
pressure related to vacuum (0bar)
Overpressure:
pressure related to atm. pressure at manufacturing
(approx. 1bar)

☞ As the pressure is transmitted to the pressure membrane
through a small hole in the thread part, the liquids
should not be prone to crystallise and gases should not
be heavily contaminated with dust.

Option:
OR8214G1 Linearity 0.1%
OR8214G Linearity 0.25%
OR8214T1 Substance temperature ?25 to +100°
OR8214T2 Substance temperature ?25 to +150°C
(version with cooling fins)
OR8214ML Food compliant version
with vegetable oil
ASEOL Food HF 16-684
OR8214DS Throttle against excess pressure
OR8214V Output 0 to 10V
OR8214A Output 0 to 20mA

Accessories:
ZA8214AK Coupler socket with 2m cable
and ALMEMO® connector
ZB8214K(L) Longer cable,
Please specify length (L)
ZB9030RB Coupler socket 6-pin
Straight version
ZB9030RBW Coupler socket 6-pin
Angled version
Types:
FD 8214:
Standard version with G1/4” internal thread
Other threads available on request
FD 8214 M:
Membrane (welded with end of thread) flush with front,
external thread G1/2”, can be sterilised (important for food and pharmaceutical industry)
Other threads available on request
Measuring ranges relative pressure:
FD8214(M)01R 0 to 100 mbar
FD8214(M)02R 0 to 160 mbar
FD8214(M)03R 0 to 250 mbar

FD8214(M)04R
0 to 400 mbar
FD8214(M)05R 0 to 600 mbar
FD8214(M)06R 0 to 800 mbar

FD8214(M)07R
0 to 1 bar
FD8214(M)08R 0 to 1.6 bar
FD8214(M)09R 0 to 2.5 bar

FD8214(M)10R
0 to 4 bar
FD8214(M)11R 0 to 6 bar
FD8214(M)12R 0 to 10 bar
Measuring ranges absolute pressure:
FD8214(M)07A 0 to 1 bar
FD8214(M)08A 0 to 1.6 bar
FD8214(M)09A 0 to 2.5 bar

FD8214(M)10A
0 to 4 bar
FD8214(M)11A 0 to 6 bar
FD8214(M) 0 to 10 bar
Measuring ranges overpressure:
FD8214(M)12U 0 to 10 bar
FD8214(M)13U 0 to 16 bar
FD8214(M)14U 0 to 25 bar

FD8214(M)15U
0 to 40 bar
FD8214(M)16U 0 to 60 bar
FD8214(M)17U 0 to 100 bar

FD8214(M)18U
0 to 160 bar
FD8214(M)19U 0 to 250 bar
FD8214(M)20U 0 to 400 bar

FD8214(M)21U
0 to 600 bar
FD8214(M)22U 0 to 1000 bar
other measuring ranges on request

Technical Data:
Max. permissible excess pressure: ranges < 400 bar: the 1.5-fold of the final
ranges > 400 bar: the 1.3-fold of the final value
Output signal: 0 to 2V ALMEMO® standard, power supply through device
(optional: 0 to 10V or 0 to 20mA)
Response time: <2ms
Linearity: ±0.5% of final value (opt.: ±0.25% of fin. val. or ±0.1% of fin. val.)
Hysteresis: ±0.1%
Temperature of test substance:
standard: 0 to +80°C, temperature compensation: 0 to 70°C
optional: -25 to +100°C, temperature compensation: -25 to +85°C
-25 to +150°C, temperature compensation: -25 to +85°C
Temperature drift: zero point: <0.015%/°C, steepness: <0.015%/°C
Nominal conditions: 22°C ±2K, 10 to 90% rH non-condensing
Power supply: 8 to 24VDC, consumption <4mA
Material: housing <25 bar special steel 1.4301, >25 bar special steel 1.4571
pressure transducer membrane special steel 1.4435
Protection system: IP 65
Dimensions:
FD 8214: 24mm Ø, L = 82mm,
FD 8214 M: 24mm Ø, L = 95mm, thread reach 19.5mm
Connecting thread:
FD 8214: internal thread G1/4”, jaw size/wrench span width SW 27 (SW27)
FD 8214 M: external thread G1/2”, jaw size/wrench span width SW 27 (SW27)
Other threads available on request
Weight: approx. 180g
Option electr. output 0?10V: power supply 18?33VDC, burden (load) >10kΩ
Option electr. output. 0?20mA: power supply 18?33VDC, burden (load) <250Ω, current consumption 25mA
