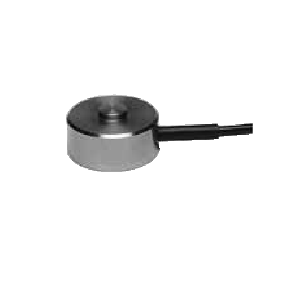

K1613 Compression Sensor Type
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Wire strain gauges in 4-conductor full-bridge circuit. Control resistance for final adjustment of the measuring range.
K1613 Compression Sensor Type

¡Ü Wire strain gauges in 4-conductor full-bridge circuit.
¡Ü Control resistance for final adjustment of the measuring range.
¡Ü All measuring ranges that are specified in Newton can also be supplied in kg ranges.
Technical Data:
Max. load limit: 150% of final value
Maximum dynamic load: 70% of final value
Reference temperature: 23¡ÆC
Cable: radial, 3m long
with ALMEMO¢ç connector
Accuracy: <¡¾0.5% of final value
Nominal measuring path: <0.2mm
Operative range: -10 to +50¡ÆC
Drift error at permanent load: 0.1% per 30min
Protection system: IP 65
Material: stainless steel

Type:
FKA613 Measuring range
0.5kN, 1kN, 2kN, 5kN, 10kN or 20kN
(50 kN on request) please specify

¢Æ All ALMEMO¢ç devices provide easy push-button
adjustment of no-load and final value.
