| Wire strain gauges in 4-conductor full-bridge circuit. Control resistance for final adjustment of the measuring range. |
K1368

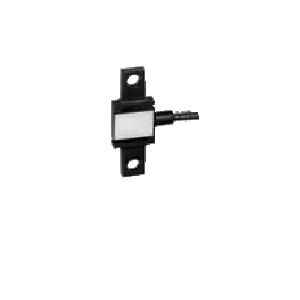

Tension Sensor Type
● Wire strain gauges
in 4-conductor full-bridge circuit.
● Control resistance
for final adjustment of the measuring range.
● All measuring ranges
that are specified in Newton can also be supplied in kg ranges.
|
| Technical Data: |
| Max. load limit: |
150% of final value |
| Maximum dynamic load: |
70% of final value |
| Reference temperature: |
23°C |
| Cable: |
3m long, with ALMEMO®
connector |
| Accuracy for tension: |
<±0.2% of final value |
| Nominal measuring path: |
<0.15mm |
| Operative range: |
+5 to +45°C |
| Drift error at permanent load: |
<0.1% per 30min |
| Permissible lateral forces: |
not allowed |
| Protection system: |
IP60 |
| Material: |
aluminium |
| Type: |
| FKA368 |
Measuring range 10N, 20N, 50N please
specify |
▒ All
ALMEMO® devices provide easy push-button
adjustment of no-load and final value. |
| |
|
|
 | |
 |
|
 |
|
