Displacement transducers are suitable for direct,accurate measurement of displacements in automatic control and metrology

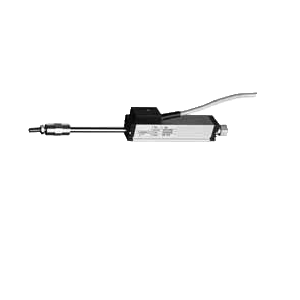

FWAxxxT
Displacement Sensor, Potentiometric Type

● Displacement transducers are suitable for direct, accurate measurement of displacements in automatic control and metrology.
● The pickup of the displacement is performed by using a pull rod with a universal joint. This allows for an actuation that is free from backlash and transverse forces, even in case of parallel and angular displacements of transducer and measuring direction.
● Elastomer-damped, independently resilient multi-finger noble metal sliding contact for reliable contact, even at high adjustment speed, shock or vibration.
● Long life span of 100 x 106 strokes, extraordinary linearity up to ±0.075%, pull rod running on two exact bearings, very high adjustment speed of up to 10m/s, shock and vibration
resistant.

▒ Pre-adjusted in the factory by storing the correction
values in the ALMEMO® connector.
The precise adjustment can be locally performed by the
user with final measures after the installation.

Option:

OWA071AK

Plug connection
(instead of fixed connected cable),
including 3m cable with screwed round socket and ALMEMO® connector

Technical Data:
Independent linearity:	T25: ±0.2%; T50: ±0.15% T75: ±0.1%; T100: ±0.075% T150: ±0.075%
Housing length (meas. A+1mm):	T25: 63mm; T50: 88mm T75: 113mm; T100: 138mm T150: 188mm
Mech. stroke (meas. B ±1.5mm):	T25: 30mm; T50: 55mm T75: 80mm; T100: 105mm T150: 155mm
Total weight (with 2m cable):	T25: 140g; T50: 160g T75: 170g; T100: 190g T150: 220g
Weight of the pull rod incl. coupling and sliding contact block:	T25: 35g; T50: 43g T75: 52g; T100: 58g T150: 74g
Movability, ball-shaped coupling	±1mm parallel displacement, ±2.5° angular displacement
Operating force (horizontal):	≤ 0.30N
Reproducibility:	0.002mm
Insulation resistance:	≥ 10MΩ (500VDC, 1 bar, 2s)
Dielectric strength:	≤ 1mA (50Hz, 2s, 1 bar, 500VAC)
Max. permissible torque:	140Ncm
Temperature range:	-30 to +100°C
Temperature coefficient:	typ. 5ppm/°C
Vibrations:	5 to 2000Hz/Amax = 0.75mm/amax = 20g
Shock:	50g/11ms
Life span:	> 100 x 106 strokes
Protection system:	IP 40

Types:
Working length/resolution, incl. ALMEMO® cable 2m long
FWA025T	25mm/0.001mm
FWA050T	50mm/0.01mm
FWA075T	75mm/0.01mm
FWA100T	100mm/0.01mm
FWA150T	150mm/0.01mm
on request	up to 3000mm working length
