Resistor and collector paths made from conducting plastic.

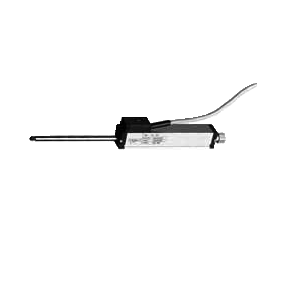

FWAxxxTR
Displacement Tracer, Potentiometric Type

● Resistor and collector paths made from conducting plastic.
● Suitable for direct measurements of displacement without a form-locking connection, position detection at stationary measuring objects, tolerance measurements and for continuous contour measurement.
● The pull rod, which is supported on both sides, allows for accepting transverse forces that, for example, occur during a continuous scan of curves or spline parts.
● Rear limit stop is used to provide a simple mechanical
coupling of automatic retraction systems, such as pneumatic cylinders or electromagnets.
● Long life span of 100 x 106 strokes, extraordinary linearity up to ±0.075%, tracer pin running on two exact bearings, DIN compliant standard measuring inserts can be used, shock and vibration resistant.

▒ Pre-adjusted in the factory by storing the correction
values in the ALMEMO® connector.
The precise adjustment can be locally performed by the
user with final measures after the installation.

Option:

OWA071AK

Plug connection
(instead of fixed connected cable),
including 3m cable
with screwed round socket
and ALMEMO® connector

Technical Data:
Independent linearity:	TR25: ±0.2%; TR50: ±0.15% TR75: ±0.1%; TR100: ±0.075%
Housing length (meas. A+1mm):	TR25: 63mm; TR50: 94.4mm; TR75: 134.4mm; TR100: 166mm
Mech. stroke (meas. B ±1.5mm):	TR25: 30mm; TR50: 55mm TR75: 80mm; TR100: 105mm
Total weight (with 2m cable):	TR25: 120g; TR50: 150g TR75: 180g; TR100: 200g
Weight of the pull rod incl. coupling and sliding contact block:	TR25: 25g; TR50: 36g TR75: 48g; TR100: 57g
Max. operating frequency: (for most critical application ´probe tip upright´)	TR25: 18Hz; TR50: 14 TR75: 11Hz; TR100: 10Hz
Operating force (horizontal):	≤ 5 N
Reproducibility:	0.002mm
Insulation resistance:	≥ 10MΩ (500VDC, 1 bar, 2s)
Dielectric strength:	≤ 1mA (50Hz, 2s, 1 bar, 500VAC)
Max. permissible torque:	140Ncm
Temperature range:	-30 to +100°C
Temperature coefficient:	typ. 5ppm/°C
Vibrations:	5 to 2000Hz/Amax = 0.75mm/amax = 20g
Shock:	50g/11ms
Life span:	> 100 x 106 strokes
Protection system:	IP 40

Types:
Working length/resolution, incl. ALMEMO® cable 2m long
FWA025TR	25mm/0.001mm
FWA050TR	50mm/0.01mm
FWA075TR	75mm/0.01mm
FWA100TR	100mm/0.01mm
