| Rotational Speed Sensor Type, Optical probe for measurements of rotational speed |
FUA9192

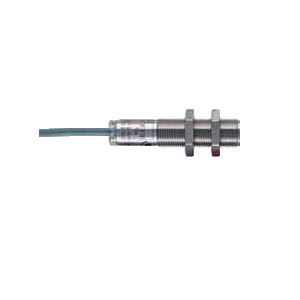

Rotational Speed Sensor Type
● Optical probe for
measurements of rotational speed,
designed as retroreflective photoelectric sensor for
photoelectric detection of rotational speeds or events.
● For evaluation
of the pulses, the tachometer probe is
equipped with a specific frequency meter module that
calculates the number of revolutions per minute from the time period between
two pulses. A stable read-out is achieved by averaging over a minimum of
500 ms.
● Easy application:
A reflective adhesive tape is attached to the moving part and the probe
is aligned with it. For function control purposes a yellow signal lamp at
the rear side of the probe will be on when the reflective adhesive tape
is recognised.
● To increase
the operation reliability the sensitivity
can be adjusted through a potentiometer.
Note:
| 1. |
Further accessories for measuring rotational
speeds
ALMEMO® adapter cables for frequency, pulses and rotational speed |
| 2. |
Measurement of the rotational speed of a current
meter disc |
| Types: |
| FUA9192 |
For rotational speeds up to 30000rpm
max.,incl. 5 reflective adhesive tapes
Connecting cable 2m long with ALMEMO® connector |
Accessories:
| ZA9060VK1 |
Extension cable, 1 meter long |
| ZA9060VK2 |
Extension cable, 2 meters long |
|
| Technical Data: |
| Measuring range: |
8 to 30000rpm (maximum) |
| Bright-up pulse time: |
> 1ms |
| Resolution: |
1rpm |
| Accuracy: |
up to 15000rpm:
± 0.02% of m.v. ± 1 digit
up to 30000rpm:
± 0.05% of m.v. ± 1 digit |
| Detection range: |
20 to 200mm
(depending on the reflector) |
| Sensitivity: |
adjustable with
potentiometers |
| Detectable object: |
opaque or reflector |
| Distance hysteresis: |
≤ 10% |
| Indication of switching status: |
LED yellow |
| Type of light: |
red light 660nm |
| Limit for foreign light: |
sun light: ≤ 20000lux
halogen light: ≤ 5000lux |
| Ambient/storage temperature: |
-25/-40°C to +55/+70°C |
| Protection system: |
IP 67 (accord. to EN 60529) |
| Optics: |
2-lens system PC |
| Permissible shock load: |
b ≤ 30g, T ≤ 1ms |
| Permissible vibrational load: |
f ≤ 55Hz, a ≤ 1mm |
| No-load current: |
≤ 20mA |
| Supply voltage: |
> 8.5VDC via instrument,
mains adapter recommended |
| Material: |
housing: brass, nickel plated,
lens opening: PMMA |
| Dimensions: |
diameter: M12 x 1mm,
length: 55mm |
| Weight: |
15g |
| Meets standards: |
EN 60 947-5-2 |
|
| |
|
|
 | |
 |
|
 |
|
