| Sensitive sensor with diamond bearing and precise adjustment for high accuracies. |

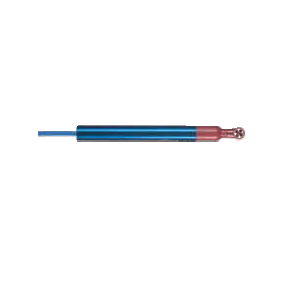

FVA915WM1 Rotating Vane for Flow Measurements in
Water Type
● Sensitive sensor
with diamond bearing and precise adjustment for high accuracies.
● The aluminium
rotating vanes have stream-lined measuring heads made from plastic material
(polysulfone).
● The shafts
are, as standard, guided in protected, oiled
beryllium-brass bearing sleeves and supported in tips made from special
case-hardened steel.
● Particularly
suitable for control measurements.
● Equipped with
snap-on measuring heads and, as a result, very easy to service. |
| Technical Data: |
| Measuring range: |
0.04 to 5m/s |
| Accuracy: |
±0.4% of fin.val., ±3% of m.v. |
| Max. resolution: |
0.01m/s |
| Nominal conditions: |
22°C ±2K/water |
| Operative range: |
0 to +80°C |
| Cable length: |
5m, ALMEMO® connector |
| Type: |
| FVA915WM1 |
Measuring range: 0.04 to 5m/s |
Accessories:
ZV9915WM1 Spare snap-on head |
| |
|
|
 | |
 |
|
 |
|
