| Perfectly suitable for use in maintenance and monitoring of electrical systems without interrupting their current supply. |

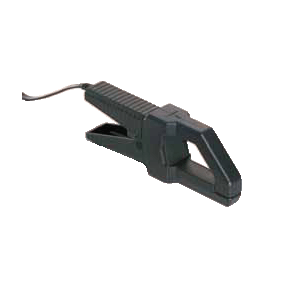

FEA6044N Split-Core Type Transformer for AC Currents
Type
● Perfectly suitable
for use in maintenance and monitoring of electrical systems without interrupting
their current supply.
● Asymmetric
shape of the jaw of tongs, particularly suitable for encompassing cables
and rails.
● With polarity
indicator for power measurements.
● Ideal for
non-contact control measurements with ALMEMO® handheld devices, e.g. at
low power systems.
|
| Technical Data: |
| Measuring range: |
2A to 500A AC
(the higher value corresponds to 120% of the max. nominal value) |
| Accuracy of meas. at 50Hz: |
± 3% of meas. val. ±0.5A |
| Encompassing capacity: |
cable Ø 30mm
rail 30 x 63mm |
| Transformation ratio: |
1mVDC/1A AC |
| Output signal: |
0.5VDC |
| Operating frequency: |
40Hz to 1kHz |
| Safety standards: |
IEC 348, IEC 1010-2-032 |
| Overvoltage protection: |
no |
| Dimensions: |
215 x 66 x 34mm |
| Weight: |
approx. 420g |
| Nominal conditions: |
25°C ±3°C/1013mbar |
| Operating temperature: |
-10 to +55°C |
| Relative humidity: |
0% to 90% at 40°C max. |
| Storage temperature: |
-40 to +70°C |
| Connecting cable: |
1.5m long
with banana plugs and
ALMEMO® connector |
| Types: |
| FEA6044N |
Single-range split-core type transformer
with integrated rectifying for small and medium AC currents incl.
ALMEMO® connecting cable (±2.6VDC) |
|
| |
|
|
 | |
 |
|
 |
|
