| ALMEMO® Measuring Modules for DC Voltage and DC Current Type |

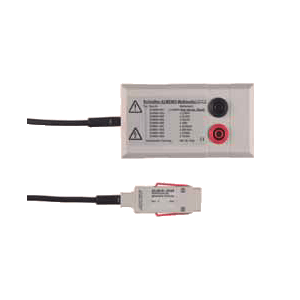

ZA9900AB/ZA9901AB ALMEMO® Measuring Modules for DC Voltage
and DC Current Type
|
|
| Technical
Data: |
| Accuracy: |
0.1% of fin. val. ±2
digits |
| Sampling rate: |
1kHz |
| Resolution: |
12bit, ±2048 digits |
| Meas. period/transient time: |
0.1s |
| Measuring cycle, maximum: |
14h |
| Electrical isolation: |
1kV permanent, 4kV for 1s |
| Housing: |
polystyrene,
dimensions L100 x W54 x H31mm |
| Sockets: |
touchproof, Ø 4mm |
| Operating voltage: |
6 … 14V
through ALMEMO® device |
| Current consumption: |
< 40mA
(connector and module) |
|
● Acquisition of the momentary, maximum, minimum and
average value, plus transferring data of each measuring point scan to the
ALMEMO® device.
● DC voltage
or DC current signal are scanned with 1kHz.
● Pure digital
data transmission to the measuring instrument.
● Connector
sockets electrically isolated and overvoltageprotected.
☞ The measuring module is not
designed for operation
with selector switch board ES5590MF. |
|
Types (incl. touchproof connecting
cable):
|
| DC Voltage: |
| Order No. |
Measuring range |
Resolution |
Overload |
Internal resistance |
| ZA9900AB2 |
±2.000 V |
0.001V |
400 V |
800 kΩ |
| ZA9900AB3 |
±20.00 V |
0.01V |
500 V |
1 MΩ |
| ZA9900AB4 |
±200.0 V |
0.1V |
500 V |
1 MΩ |
| ZA9900AB5 |
±400 V |
1V |
1000 V |
4 MΩ |
| DC Current: |
| Order No. |
Measuring range |
Resolution |
Overload |
Internal resistance |
| ZA9901AB1 |
±20.00 mA |
0.01mA |
0.1 A* |
10 Ω |
| ZA9901AB2 |
±200.0 mA |
0.1mA |
1 A* |
1 Ω |
| ZA9901AB3 |
±2.000 A |
0.001A |
10 A* |
0.1 Ω |
| ZA9901AB4 |
±10.00 A |
0.01A |
20 A* |
0.01 Ω |
| |
|
*Without
fuse, overload condition only up to 1 minute maximum |
| DC via external shunt: |
| ZA9900AB1 |
±200.0 mV |
0.1mV |
40 V |
50 kΩ |
|
| |
|
|
 | |
 |
|
 |
|
